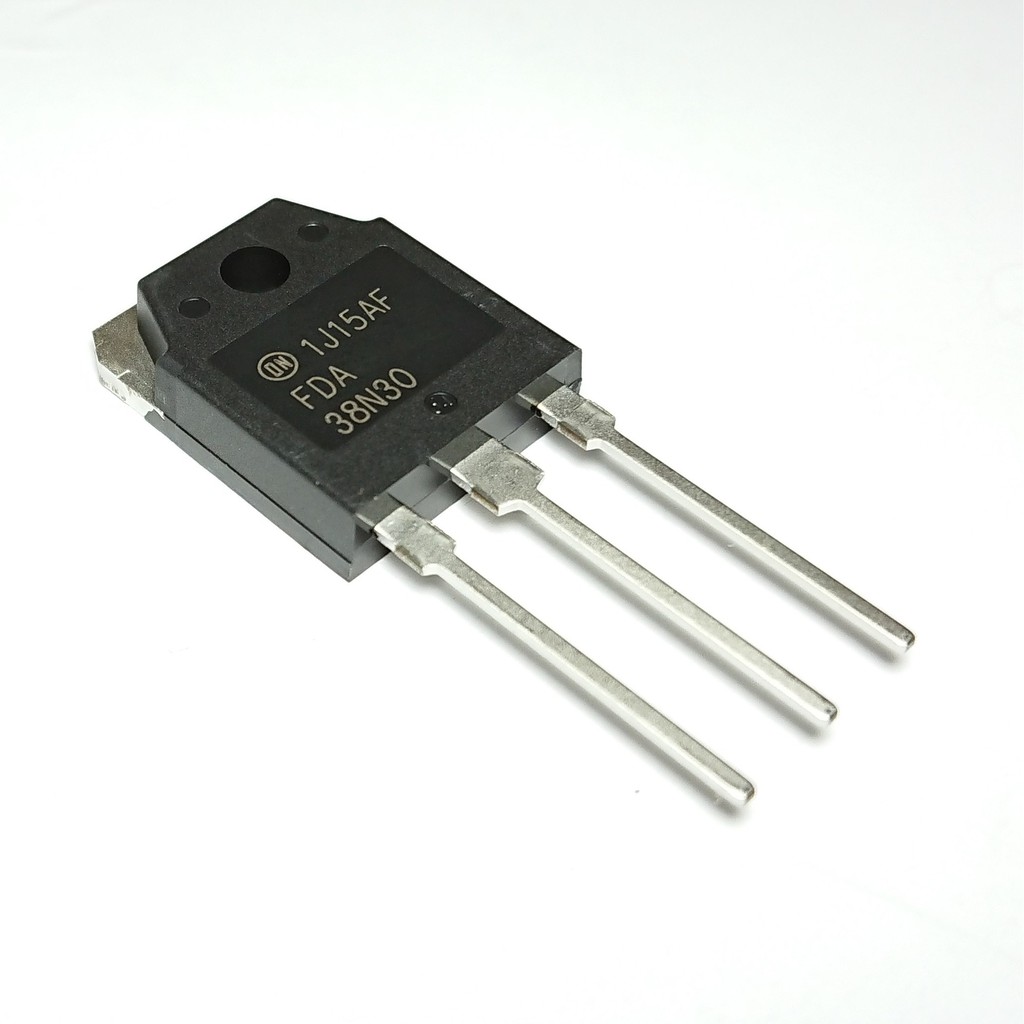

FDA38N30 มอสเฟต Mosfet ภาคขยายแอมป์รถยนต์ Class D

Type Designator: FDA38N30
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 312 W
Maximum Drain-Source Voltage |Vds|: 300 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 38 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 60 nC
Maximum Drain-Source On-State Resistance (Rds): 0.085 Ohm
Package: TO3PN
