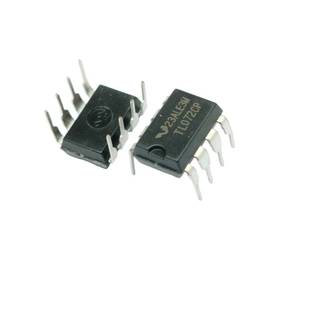

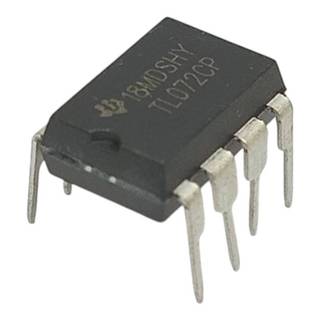

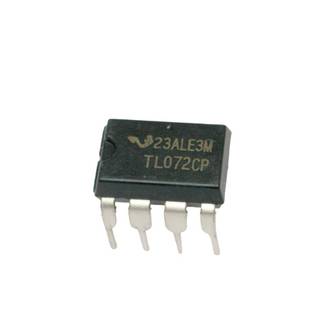

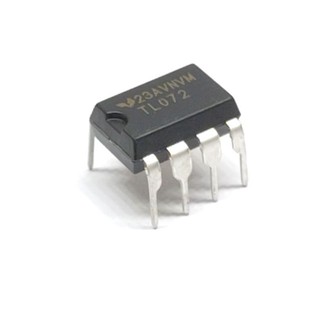

ไอซี TL072 TL072CP Low noise JFET dual operational Amplifier

ไอซีเบอร์ TL072CP DIP8
Low noise JFET dual Operation Amplifier
คุณสมบัติ:
-The TL072 JFET-input operational amplifiers incorporate well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit
-Low Power Consumption, Wide Common-Mode and Differential Voltage Ranges, Low Input Bias and Offset Currents
-Output Short-Circuit Protection, Low Total Harmonic Distortion: 0.003% (Typical), Low Noise Vn = 18 nV/√Hz (Typical) at f = 1 kHz
-High-Input Impedance: JFET Input Stage, Internal Frequency Compensation, Latch-Up-Free Operation
-High Slew Rate: 13 V/µs (Typical), Common-Mode Input Voltage Range Includes VCC+,

การประยุกต์ใช้งาน:
Motor Integrated Systems: UPS, Drives and Control Solutions: AC Inverter and VF Drives, Renewables: Solar Inverters, Pro Audio Mixers, DLP Front Projection System, Oscilloscopes
