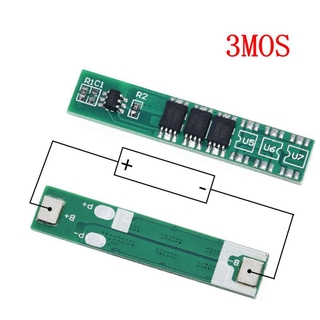

3MOS Operation parameters:
Charging test voltage: 4.25 + / - 0.05 V
Charging: release of the 4.23 + / - 0.05 V
A discharge detection voltage: 2.45 + / - 0.1 V
Maximum sustained current: 6 a
Over-current detection current: 7.5 A
Charging voltage: 4.2 V
Product size: 35 * 7.4 * 7.4 MM
IC components: DW01 + 8205A

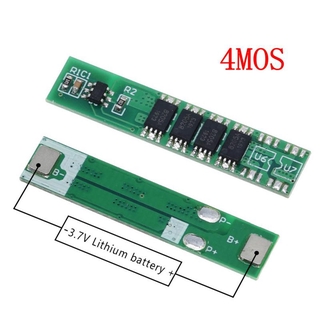

4MOS Operation parameters:
Over charge voltage: 4.25±0.05V
Over charge release voltage:4.23±0.05V
Over discharge voltage:2.54±0.1V
Maximal continuous charging/discharge current: 7.5A
Maximal Discharging current: 10A
Size: L35*W7*T2mm
IC component: DW01+8205A
Weight: 10g
Main functions:
Overcharge protection, overdischarge protection, short circuit protection, overcurrent protection.
Wiring instructions:
B+ connect the positive electrode of the battery.
B- connect the battery cathode.
P+ is the input positive pole of battery output
P- is the output input cathode of the battery pack
