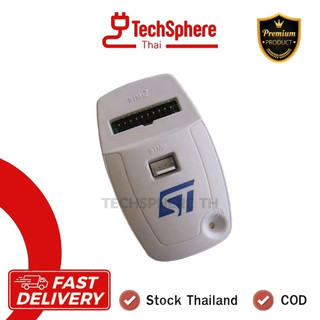

ST-LINK/V2 (CN/Clone) USB Programmer & Debugger for STM8 / STM32
📌 Product Description
The ST-LINK/V2 (CN/Clone) is a compatible programmer and debugger for STM8 and STM32 microcontrollers from STMicroelectronics. Designed for firmware flashing, debugging, and testing embedded development boards.
⚙️ Features
● Supports compatible STM8 and STM32 microcontrollers.
● SWIM interface for STM8 programming and debugging.
● JTAG / SWD interfaces for STM32 programming and debugging.
● USB connection to a computer.
● Firmware programming and debugging in one device.
💻 Supported Software
Designed for use with compatible versions of:
● ST Visual Develop (STVD)
● ST Visual Program (STVP)
● Keil
● IAR
● Atollic / STM32 development tools
● TASKING
Software compatibility depends on the programmer’s firmware, drivers, and software version.
🔧 Supported Devices
● STM8 microcontrollers with a compatible SWIM interface.
● STM32 microcontrollers with a compatible JTAG / SWD interface.
💡 LED Status Indicators
● Flashing red: Connecting to the computer via USB. Continuous flashing may indicate a missing driver.
● Solid red: Connected to the computer.
● Alternating red and green: Data transfer in progress.
● Green: The most recent communication was successful.
● Orange: Communication with the target device failed.
LED behavior may vary with the compatible hardware version.

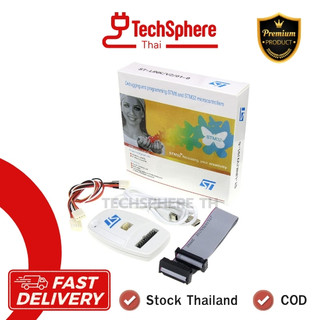

📦 Package Includes
● 1 × ST-LINK/V2 Programmer
● 1 × USB Type-A to Mini-B Cable
● 1 × 20-Pin JTAG/SWD Flat Ribbon Cable
● 1 × 4-Pin SWIM Cable
● 1 × 4-Pin SWIM Cable with Special Connector
🔌 Applications
● STM8 / STM32 firmware programming and debugging.
● Embedded development, engineering, and educational projects.
● Development boards and IoT projects.
📌 Notes
● Install the appropriate driver before use.
● This product is a CN/Clone compatible version, not an original STMicroelectronics ST-LINK/V2.
● Verify compatibility with your target microcontroller and development software before use.
