Product Features:
Using CAN non-isolated chip TJA1051T/3, baud rate up to 1M

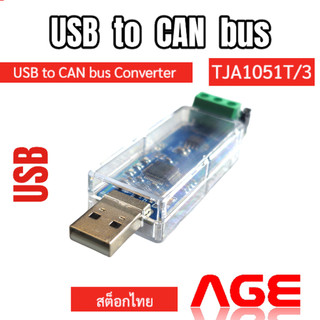

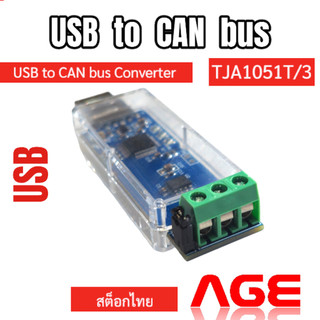

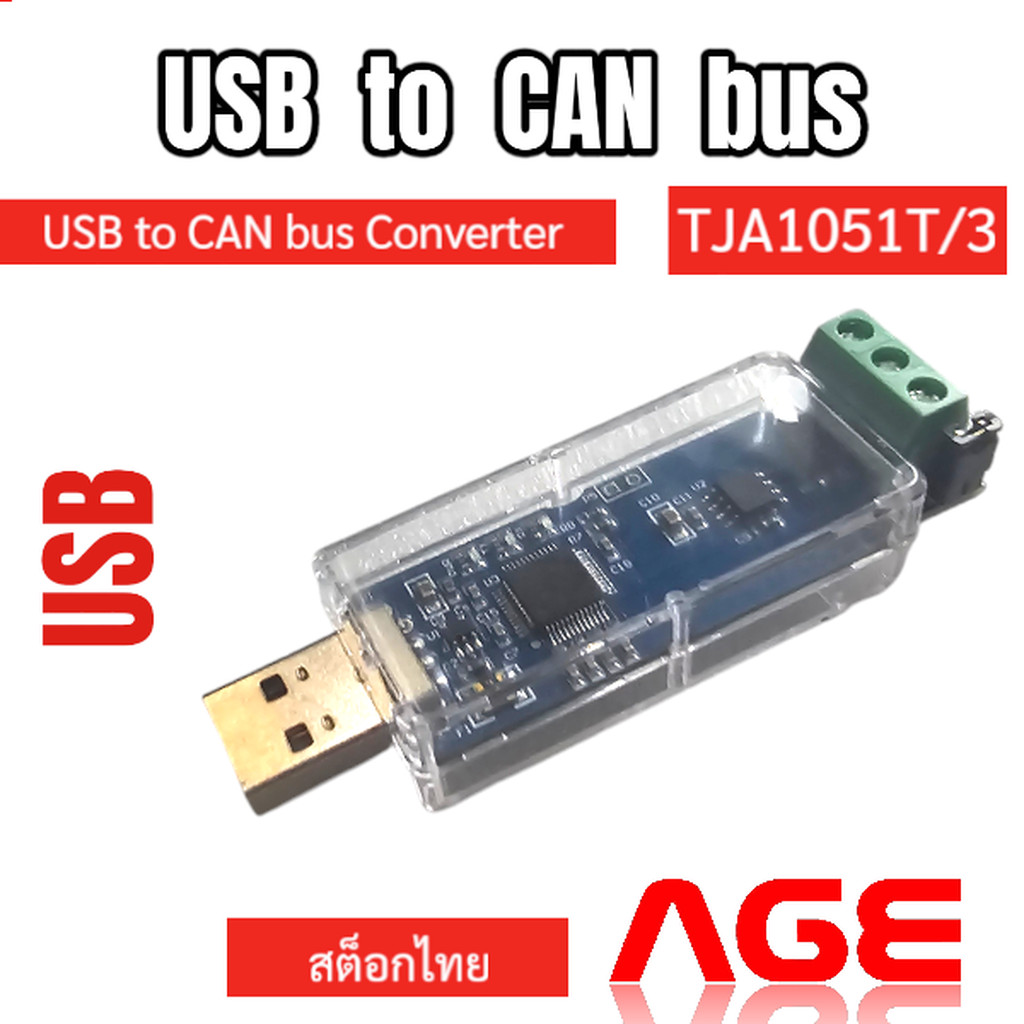

USB to CAN module (TJA1051T/3 non-isolated version) CAN bus debugging assistant CAN bus analyzer supports open source upper computer Cangaroo CAN protocol analysis software
CANABLE usb to can module is based on the open source project ported.
CAN bus protocol analysis can be performed using the open source upper computer Cangaroo.
Functional features:
Input voltage: 5V (USB powered)
Chip: TJA1051T/3
Baud rate: up to 1M
Status indicator: Tri-colour LED
Support: Open source upper computer Cangaroo CAN protocol analysis software
Instructions for use:
The RES jumper cap is inserted to indicate access to the 120Q termination resistor, if not needed the jumper cap can be removed.
Connect CAN_H and CAN_L to the CAN bus, GND can be connected or not.
Plug in the PC and the CAN device will appear in the device manager.
Open the host computer
Select the desired baud rate and sampling point, click ok, the on-board tri-colour light will illuminate.
You can send and receive data on the CAN bus.
