Product Features:
1.ESP32-S3 WROOM is designed based on the ESP32S3-WROOM-1 module with PCB on-board antenna.
2.ESP32-S3 development board can be paired with OV2640/OV5640 two kinds of cameras optional.
3.ESP32-S3 is a low-power MCU system-on-chip (SoC) with integrated 2.4 GHz Wi-Fi and low-power Bluetooth dual-mode wireless communication.
4.ESP32-S3 has a complete Wi-Fi subsystem and low-power Bluetooth subsystem, with industry-leading low-power performance and RF performance, and supports a variety of low-power operating states to meet the power requirements of various application scenarios.
5.ESP32-S3 chip provides rich peripheral interfaces, and has a variety of unique hardware security mechanisms, perfect security mechanisms to enable the chip to meet the strict security requirements.Performance parameters:
Controller: XtensaR dual-core 32-bit LX7 CPU, frequency up to 240MHz
Storage:
384 KB of ROM
512 KB SRAM
16 KB RTCSRAM
8 MB PSRAM
Operating voltage: 3V to 3.6V.
Up to 45 GPIOs
2*12-bit ADC (up to 20 channels)
Communication interfaces.
2 12c interfaces
2 12s interfaces
4 SPI interfaces
3 UART interfaces
1 USB oTG interface.
Temperature range: -40 to 65 degrees CelsiusWiFi
Supports IEEE 802.11 b/g/n protocols
Supports 20 MHz and 40 MHz bandwidths in the 2.4 GHz band
Supports 1T1R mode with data rates up to 150 Mbps
Wireless Multimedia (WMM)
Frame aggregation (TX/RX A-MPDU, TX/RX A-MSDU)
ImmediateBlock ACK
Fragmentation/defragmentation - Automatic beacon monitoring (hardware TSF) - 4 x virtual Wi-Fi interfaces
Simultaneous support for infrastructure BSS Station mode, SoftAP mode and Station+ SoftAP hybrid mode Please note that when ESP32-S3 is scanning in Station mode, the SoftAP channel will be changed at the same time.
Antenna Diversity
802.11 mc FTM
External power amplifier support
Bluetooth
Bluetooth Low Power (Bluetooth LE): Bluetooth 5, Bluetoothmesh
High power mode (20 dBm, shared PA with Wi-Fi)
Rate support: 125Kbps, 500Kbps, 1 Mbps, 2 Mbps.
AdvertisingExtensions
MultipleAdvertisement Sets (MultipleAdvertisement Sets) Channel Selection Algorithm (Channel Selection Algorithm #2) Wi-Fi and Bluetooth coexist and share the same antenna.
Advanced Peripheral Interfaces and Sensors
45 x GPIO ports
Digital interfaces: 4xSPl
- 4xSPl
- 1xLCD interface (8-bit)
- 16-bit parallel RGB, L8080, MOTO6800), support RGB565, YUV422, YUV420, YUV411 conversion between each other
- 1xDVP8-bit~16-bit camera interface
-3xUART
-2xl2C
- 2x 12S
- 1xRMT (TX/RX)
-1xPulse Counter
-LED PWM Controller, up to 8 channels
- 1x Full Speed USB OTG
- 1 x USB Serial/JTAG Controller
- 2x MCPWM
- 1 x SDIO host interface with 2 card slots
-General Purpose DMA Controller (GDMA for short), 5 receive channels and 5 transmit channels
- 1 x TWAI controller, IS011898-1 compatible ( CAN specification 2.0)
Analog Interface.
- 2x12-bit SAR ADC, up to 20 channels
- 1x temperature sensor
-14x capacitive sensing GPIOsTimers.-4 x 54-bit general purpose timer
- 1 x 52-bit system timer
- 3Watchdog Timer

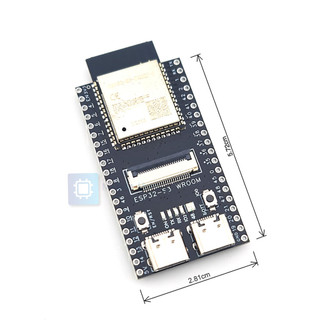

Product Size: 57mm*28mm
