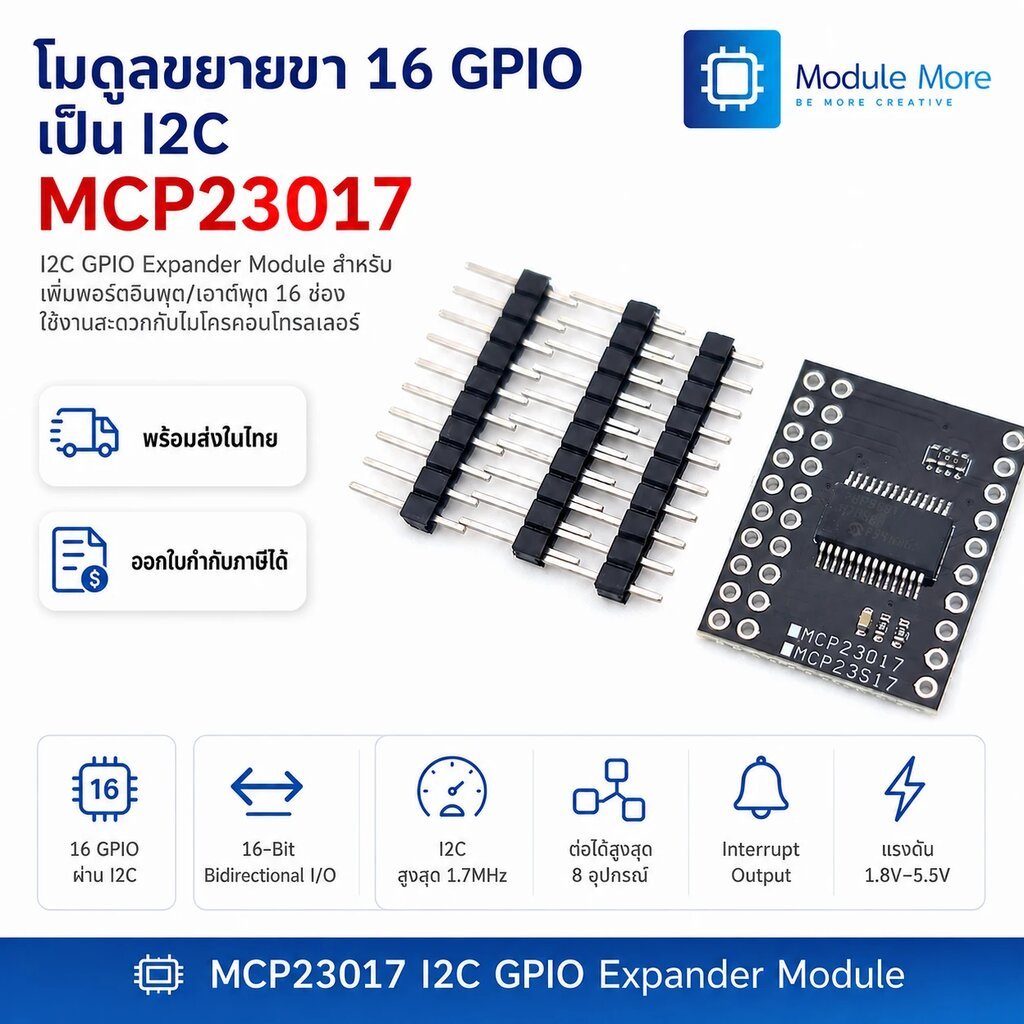

โมดูลขยายขา 16 GPIO เป็น i2c MCP23017
Descriptions:

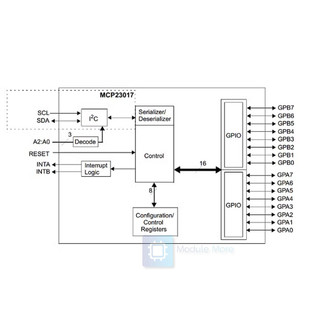

The MCP23017 is capable of converting 16-bit parallel data to serial data of the IIC interface and converting each other. An internal integrated power-on reset (POR) circuit is reset to the device's default state. The two opposites become the interrupt source output. The polarity toggle register configures the GPIO input polarity.
Specifications:
- 16-Bit Remote Bidirectional I/O Port:
- - I/O pins default to input
- High-Speed I2C Interface (MCP23017):
- - 100kHz
- - 400kHz
- - 1.7MHz
- Three Hardware Address Pins to Allow Up to Eight Devices On the Bus
- Configurable Interrupt Output Pins:
- - Configurable as active-high, active-low or open-drain
- INTA and INTB Can Be Configured to Operate Independently or Together
- Configurable Interrupt Source:
- - Interrupt-on-change from configured register defaults or pin changes
- Polarity Inversion Register to Configure the Polarity of the Input Port Data
- External Reset Input
- Low Standby Current: 1 A (max.)
- Operating Voltage:
- - 1.8V to 5.5V @ -40C to +85C
- - 2.7V to 5.5V @ -40C to +85C
- - 4.5V to 5.5V @ -40C to +125C
Package Contains:

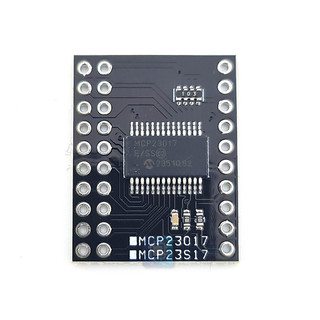

- 1pc x MCP23017 Serial Interface Module
