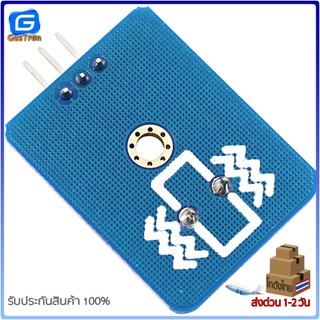

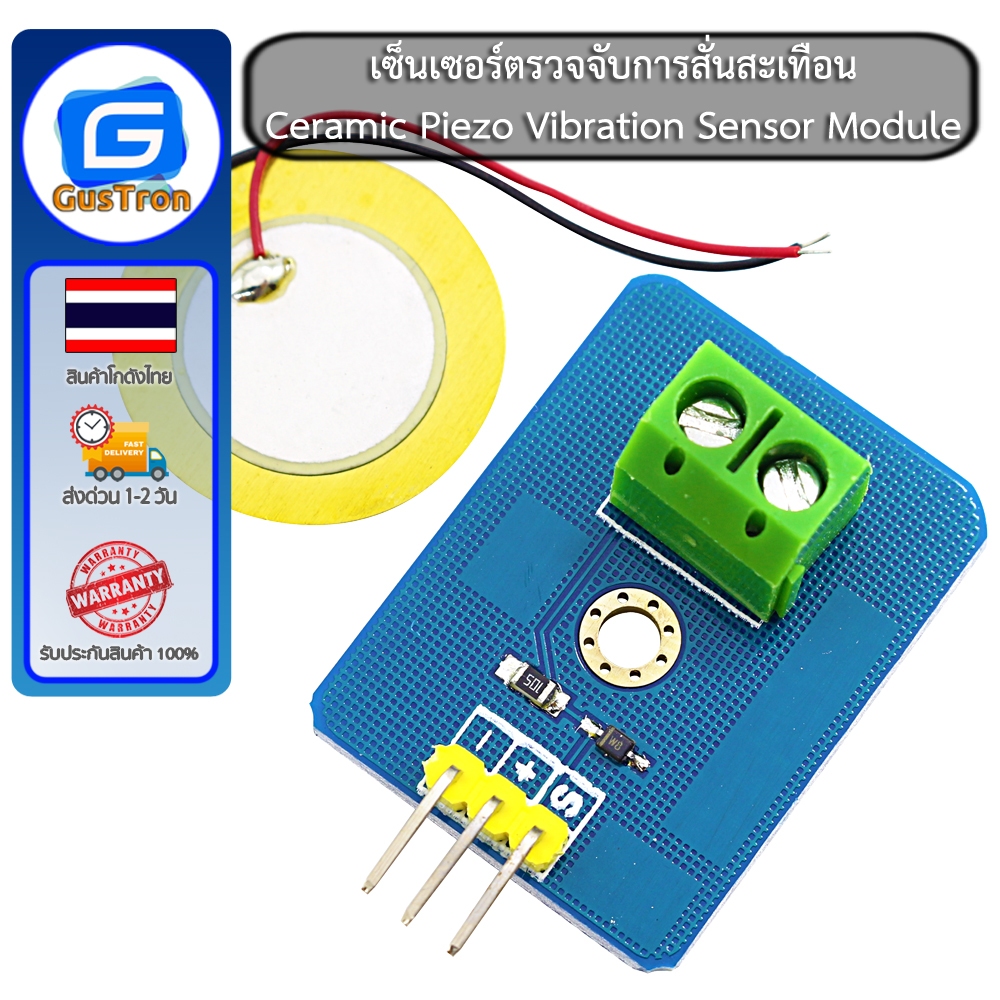

Analog Piezoelectric Ceramics Vibration Sensors Vibration Sensors Electronic Building Blocks 3p Line Harbin Aosong Robotics Technology Co., Ltd. recently introduced analog piezoelectric ceramic vibration sensor, the product is the use of piezoelectric ceramic signal to generate vibration reverse process, when the piezoelectric ceramic Vibration will produce electrical signals, and Arduino sensor expansion board v5.0 in combination, Arduino analog port can perceive the weak vibration of the electrical signal, can be achieved with the vibration of interactive works, such as electronic drum interactive works. Performance
Description:
1. Operating voltage: 3.3V or 5V
2. Operating current: <1mA
3. Operating temperature range: -10 ℃ ~ +70 ℃
4. Interface type: analog signal output
5. Size: 30mm x 23mm
6. Weight: 5g

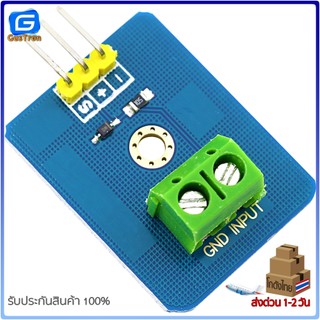

7. Pin definition: S signal output, + power supply (VCC), - ground (GND)

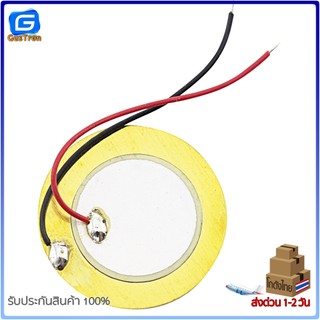

8. Input: Positive pole of piezoelectric ceramic sheet
9. Gnd: the negative
