โมดูลจอพร้อมปุ่ม knob 0.96/1.3 Inch OLED Display Screen With EC11 Rotary Encoder Module IIC Interface
*สีจอ OLED สีขาว
*White OLED display
ตัวอย่างวิธีการใช้งานกับ ESP32 (Click / inbox)
Features:
1. Compact design: Integrated with display screen and encoder functions, the design is compact and saves space.
2. Rich interfaces: Supports iic communication interfaces, making it easy to connect with the main control device.
3. Equipped with oled screen: Users can perform intuitive operations by rotating buttons, suitable for application scenarios such as parameter adjustment.
4. The rotary encoder can rotate 360 and accurately rotate the position and direction.
5. Additional return and confirmation buttons are provided, with independent button interfaces and integrated design for easy diy.
Module introduction

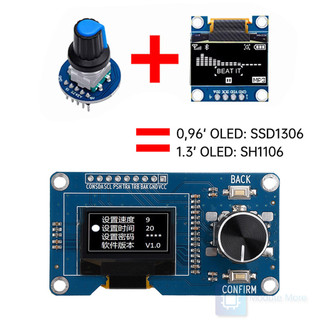

This module is a combination of oled iic interface module and ec11 rotary encoder module, which are not related but are placed on the same board to form an integrated module. It is also equipped with return and confirmation buttons, with independent button interfaces and integrated design, making it convenient for diy
Parameters:
Product name: oled rotary encoder
Model: 0.96/1.3-inch oled (optional)
Oled driver chip: sh1106 (1.3 inches)/ssd1306 (0.96 inches)

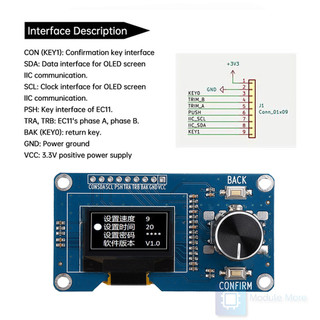

Oled interface: iic
Ec11: plum blossom stem, stem length 15mm, 20 impact resistant, 20 positioning, 5-pin with switch
Package include:
Oled rotary encoder*1
Pin set*1
