รายละเอียดสินค้าจากร้านค้า

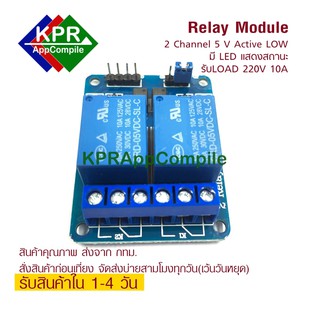

Relay Module 5V DCOutput 2 way
- Dimensions: 50.5mm (length) * 38.5mm (W) * 18.5 (H)
- Weight:. 31g
- PCB Color: Black
- Board four weeks with four screws holes, hole diameter 3.1mm, easy to install and fixed
- Relay of high quality loose music relays SPDT. A common terminal, a normally open, one normally closed terminal
- Optocoupler isolation, good anti-jamming
- Low pull, high release. Energisation status indicator light, release status LED is off
- VCC of system power, JD_VCC relay power. You can plug in jumpers
- Electrical parameters:
- Supply voltage: 5VDC, 12VDC
- Current: more than 100mA
- Load: 250V 10A AC or 30V 10A DC
Relay 5v 2 Channel Relay Module with optocoupler Relay Output 2 way relay module for arduino, nodemcu, demos
1 Dimensions: 50.5mm (length) * 39mm (W) * 19 (H)
2 Weight:. 31g
3 PCB Color: Black
4 Board four weeks with four screws holes, hole diameter 3.1mm, easy to install and fixed
5 Relay of high quality loose music relays SPDT. A common terminal, a normally open, one normally closed terminal
6 optocoupler isolation, good anti-jamming
7 low pull, high release. Energisation status indicator light, release status LED is off
8 VCC of system power, JD_VCC relay power. You can plug in jumpers
Electrical parameters:
Supply voltage: 5VDC
Current: more than 100mA
Load: 250V 10A AC or 30V 10A DC
Wiring:
VCC: positive power supply system
GND: System power negative
IN1 - IN2: relay control ports
