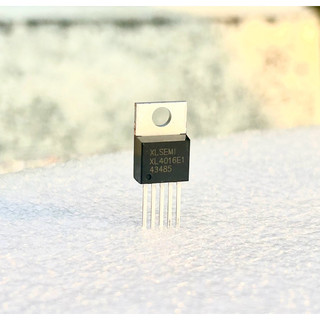

IC DC To DC buck converter XL4016E1 8A 40Vdc แท้XLSEMI

Features

n Wide 8V to 40V Input Voltage Range

n Output Adjustable from 1.25V to 36V

n Maximum Duty Cycle 100%

n Minimum Drop Out 0.3V

n Fixed 180KHz Switching Frequency

n 8A Constant Output Current Capability

n Internal Optimize Power MOSFET

n High efficiency up to 96%

n Excellent line and load regulation

n Built in thermal shutdown function

n Built in current limit function

n Built in output short protection function

n Built in input over voltage protection

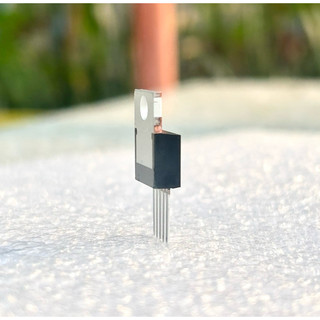

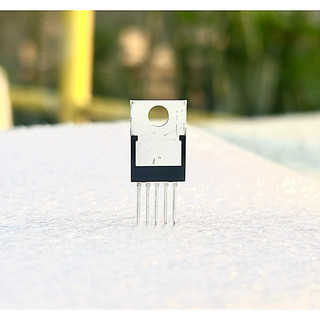

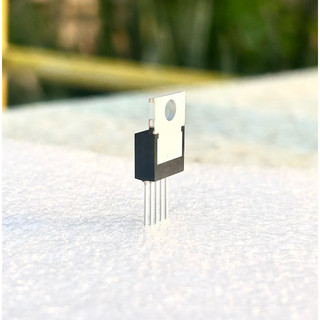

n Available in TO220-5L package

General Description

The XL4016 is a 180 KHz fixed frequency

PWM buck (step-down) DC/DC converter,

capable of driving a 8A load with high

efficiency, low ripple and excellent line and

load regulation. Requiring a minimum

number of external components, the regulator

is simple to use and include internal

frequency compensation and a

fixed-frequency oscillator.

The PWM control circuit is able to adjust the

duty ratio linearly from 0 to 100%. An over

current protection function is built inside.

When short protection function happens, the

operation frequency will be reduced from

180KHz to 48KHz. An internal compensation

block is built in to minimize external

component count.

Applications

n LCD Monitor and LCD TV

n Portable instrument power supply

n Telecom / Networking Equipment
