• Pin compatible with TDA8950/20C for both HSOP24 and DBS23P packages
• Symmetrical operating supply voltage range from +12.5 V to +32.5 V
• Stereo full differential inputs, can be used as stereo Single-Ended (SE) or mono Bridge-Tied Load (BTL) amplifier
• High output power in typical applications:
- SE 2 .75 W, RL = 6 2 (Vop = 30 V, Vss = -30 V)
- SE 2 - 60 W, RL = 8 Q (VoD = 30 V; Vss = -30 V)
- BTL 1 ㆍ 155 W, RL = 8 9 (VoD = 25 V; Vss = -25 V)
• Low noise
• Smooth pop noise-free start-up and switch off
• Zero dead time switching
• Fixed frequency
• Internal or external clock
• High efficiency
• Low quiescent current
• Advanced protection strategy: voltage protection and output current limiting
• Thermal FoldBack (TFB)
• Fixed gain of 30 dB in SE and 36 dB in BTL applications
• Fully short-circuit proof across load
• BD modulation in BTL configuration

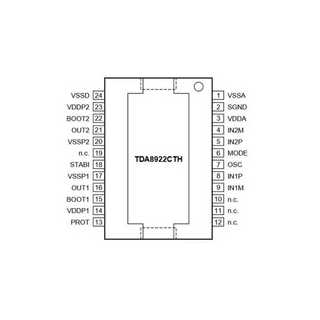

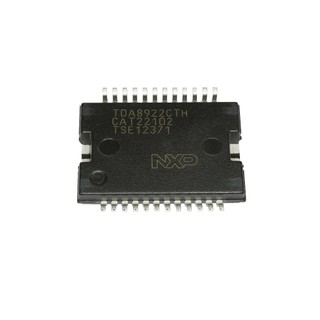

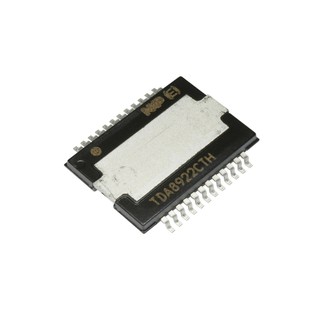

ชื่อสินค้า : TDA8922CTH
รหัสสินค้า : 09010063
