Product : IGBT, MOSFET Gate Drivers
Type : High Side, Low Side
Mounting Style : Through Hole
Package / Case : PDIP-14
Number of Drivers : 2 Driver
Number of Outputs : 2 Output
Output Current : 2.5 A
Supply Voltage - Min : 10 V
Supply Voltage - Max : 20 V
Configuration : High Side, Low Side
Rise Time : 35 ns
Fall Time : 25 ns
Minimum Operating Temperature : - 40 C
Maximum Operating Temperature : + 125 C
Packaging : Tube
Features : Independent
Height : 5.33 mm
Length : 20.19 mm
Width : 7.11 mm
Technology : Si
Brand : Infineon / IR
Logic Type : CMOS, TTL
Propagation Delay - Max : 150 ns
Maximum Turn-Off Delay Time : 94 ns
Maximum Turn-On Delay Time : 120 ns
Operating Supply Current : 340 uA
Pd - Power Dissipation : 1.6 W

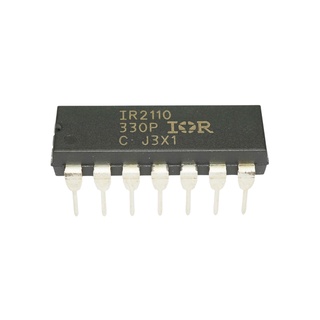

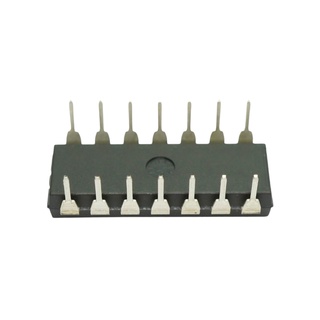

ชื่อสินค้า : IR2110
รหัสสินค้า : 09020034
