Product Description:

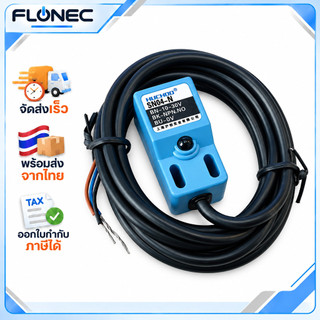

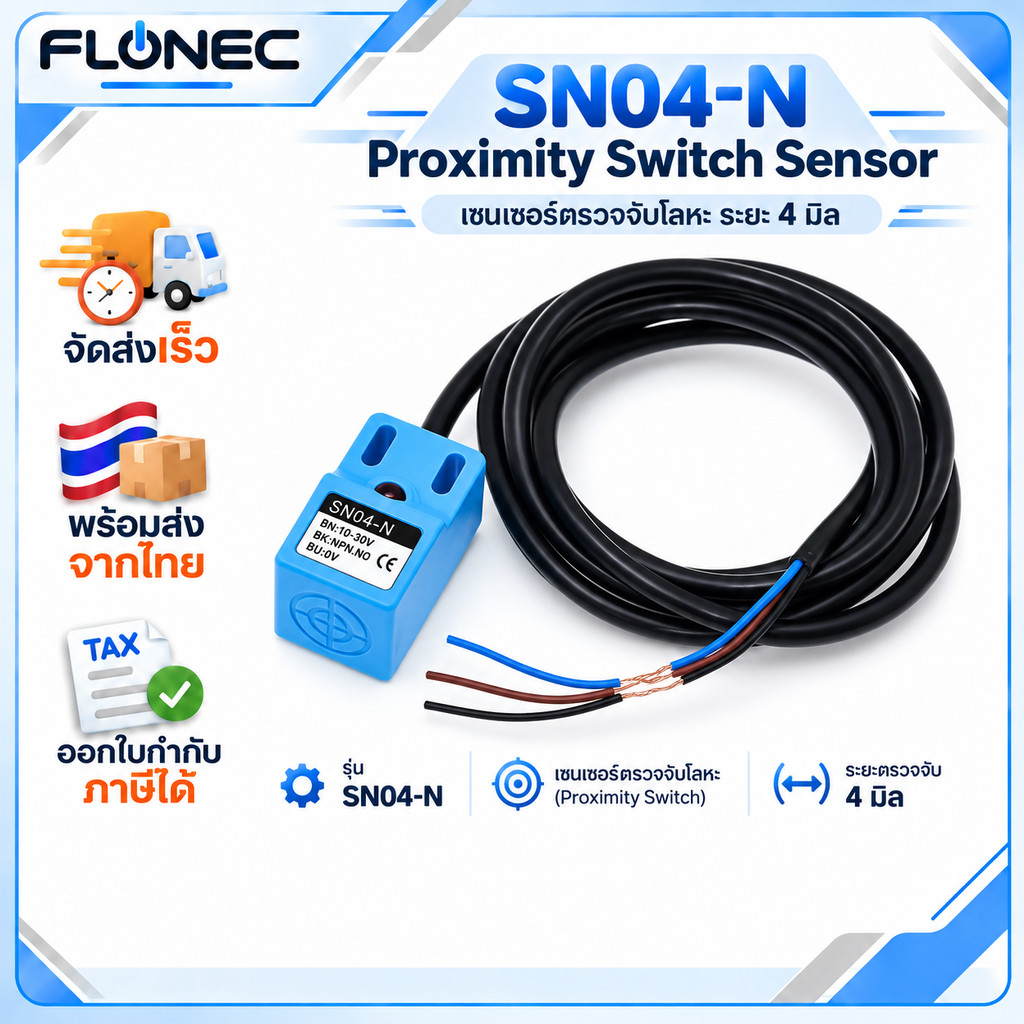

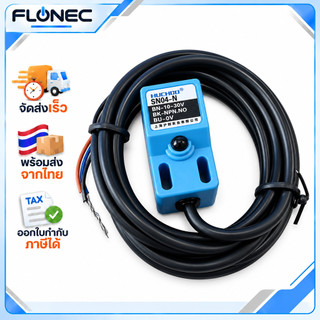

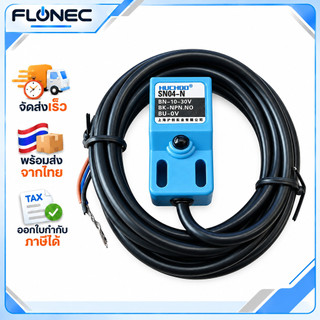

Name: SN04-N Proximity Switch Sensor
Model: 636442
Specification:
Color: Black, Blue
Rated Current: 0.4A
Rated Voltage: 10-30V
Sensing Distance: 4mm
Response Frequency: 500Hz
3C rated voltage range: 440V and below
การต่อสายใช้งาน
สายสีน้ำตาล ไฟบวก 10-36VDC
สายสีฟ้า ต่อกราวด์ GND
สายสีดำ เป็นสายสัญญาณ OUTPUT
Features:
The proximity switch is a high-frequency oscillation type, which sends a detection signal quickly, without pressure, no pressure, without a spark, to drive the relay or logic gate. It has high sensitivity, fast frequency response, high repeatability, Short, the output power is large, the anti-jamming performance is good, the working stability is reliable, the service life is long and so on. The switch is filled with resin to make it completely closed, and it has the characteristics of vibration resistance, corrosion resistance and waterproofing.
