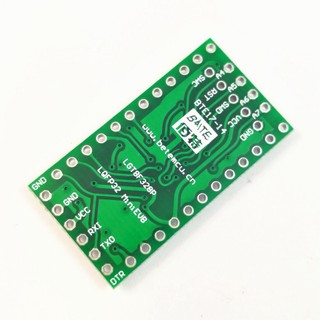

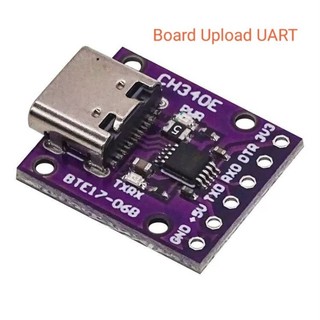

สินค้าจาก powerswitching.com บอร์ด LGT8F328P-LFQ32 MiniEVB ใช้บอร์ด Atmega328P ได้ และยังใช้ IDE Arduino ได้ หากยังไม่มีบอร์ดไว้สำหรับ Upload สามารถกดเลือก "USB to TTL (Type C)" ไปด้วยได้ ใช้สาย USB Type C
Board Lib ที่เอาไว้ใช้กับโปรแกรม Arduino IDE
https://github.com/LGTMCU/Larduino_HSP

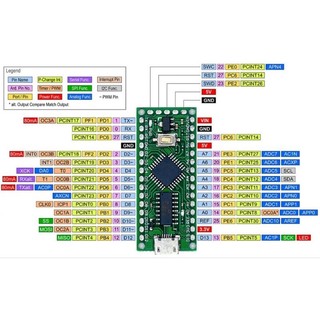

Arduino Nano 3.0 LGT8F328P Compatible
- 8F328P-U MCU used by the LGT8F328P, is a Atmel MEGA328P compatible chip.
- 8F328D architecture design is relatively new, peripheral functions far stronger than Atmel MEGA328. Especially the program encryption ability is far more than MEGA328.
- 8F328D can use 3V3 and 5V power supply running at 16M frequency, excellent level compatibility.
- Built-in high-precision RC, no external crystal can be stable operation.
- Less peripheral parts, circuit design is simple.
- 12-bit ADC (analog-to-digital conversion)
- On board DAC
- Owned GUID (unique ID) can be used for chip program encryption
- Built-in internal 1.024V / 2.048V / 4.096V ± 1% calibratable reference voltage source
The feature compare
Feature LGT8F328P atmega328P
DAC output Yes -
Internal reference resoltuion ±0.5% ±1.5%
PWM dead zone control Yes -
High current push - pull PWM Yes -
Computing Accelerator (DSC) Yes -
Stacking expansion system Yes -
Speed 32M 16M
