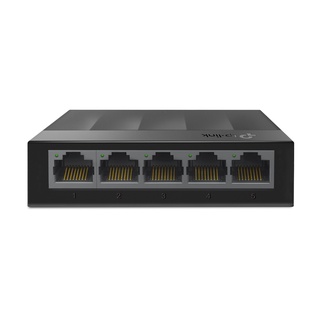

5× 10/100/1000Mbps Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
Green Ethernet technology saves power
IEEE 802.3X flow control provides reliable data transfer
Plastic casing, desktop or wall-mounting design
Plug and play, no configuration needed
Fanless design ensures quiet operation
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x
Interface 5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 5VDC/0.6A)
Dimensions ( W x D x H ) 3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm)
Max Power Consumption 3.7W
Max Heat Dissipation 12.617 BTU/h
PERFORMANCE
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.4 Mpps
MAC Address Table 2K
Packet Buffer Memory 1.5 Mb
Jumbo Frame 16 KB
SOFTWARE FEATURES
Advanced Features Green Technology
802.3X Flow Control
Back Pressure
Transfer Method Store and Forward
OTHERS
Certification CE, FCC, RoHS

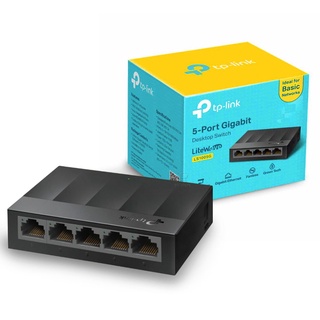

Package Contents 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40℃~60℃ (-40℉~140℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
