Description:
1: Wide range of applications
2: Simple to use
3: Small appearance
4: PE cylinder protective sleeve
5: Working voltage: 2.15-5.5V

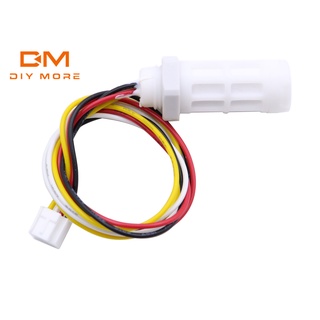

SHT30, the whole is made of glue and waterproof treatment, to prevent condensation and cause short circuit damage to the sensor. Onboard 10K pull-up resistor and 100nF filter capacitor. The sensor PCB board is encapsulated in the protective cover of the PE cylinder, and it is led out through a 30cm 4PIN 24 electronic wire, and the interface is HY2.0-4P (2.0 with lock)
Product model: IOT SHT30
Working voltage: 2.15-5.5V
Output signal: IIC digital signal
Humidity measurement range: 0-100%RH
Temperature measurement range: -40-125℃
Accuracy: ±2%RH ±0.2℃
IIC address: 0X44

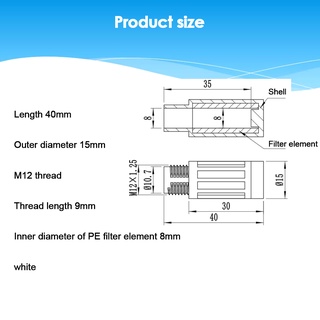

Product shell material: PE sintered
Interface: HY2.0-4P (2.0 with lock)
Line length: about 28cm

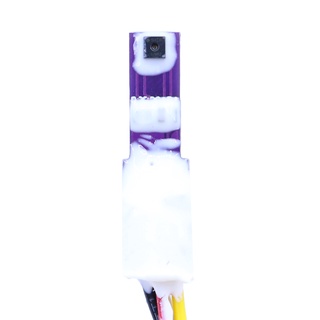

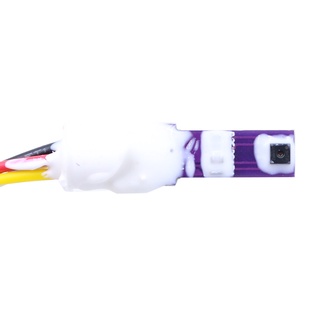

In order to prevent the water molecules inside the sheath from condensing into water when the ambient temperature is lowered, which causes the circuit board to be short-circuited or the sensor is damaged, we have applied glue to the circuit board and potted the mouth of the sheath. No interference to the measured value.
