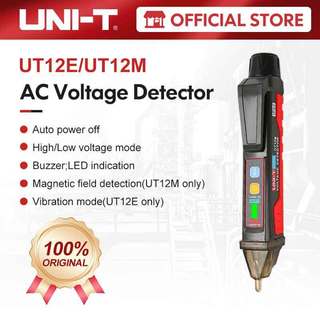

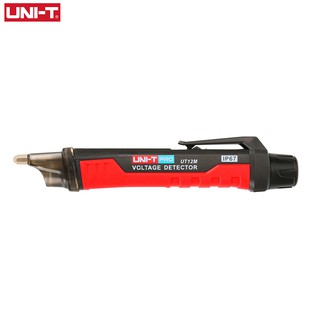

UT12E/UT12M AC Voltage Detectors
UT12E and UT12M are UNI-T’s professional grade voltage detectors.They are designed with IP67 dust/water resistant and can withstand 2 metersdrop.These durable devices are great for working in harsh environments.UT12E has an optional vibration mode and UT12M is able to detect magnetic fields.
Features
● Auto power off
● Buzzer
● LED indication
● IP 67
● AC voltagedetection
● High/Lowvoltage mode
● Magnetic solenoiddetection (UT12M-ROW)
● Vibration mode(UT12E-ROW)
Applications:
Low voltage mode: Low-voltage motor (<90V), audio systems, arc welding machines,underground mining lighting, cables with thick insulation layer and other weakelectromagnetic AC signals.
High voltage mode: Urban electric supply and three-phase systems (90~1000V).For example, power distribution units, electrical panels, electrical appliances.
Specifications
Model UT12E UT12M
AC voltage (Low) 24V~1000V 24V~1000V
AC voltage (High) 90V~1000V 90V~1000V
Frequency range 50/60Hz
Vibration mode √ (Only UT12E has this function)
Magnetic solenoid detection √ (Only UT12M has this function)
Built-in flashlight √
Audible (buzzer) and visual (LED) indication √
Buzzer √
LED indication √
Auto power off √
Low voltage indication √
Double injection molding √
Drop test:2m
General Characteristics
Power :1.5V battery (R03) x 2 （Notice please: batteries are no included）
Product color:Red and grey
Product net weight:about 72g
Product size:160.5mm x 21.5 mm x 25mm
Standard individual packing:Blister, English manual
