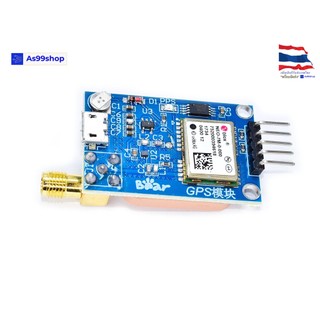

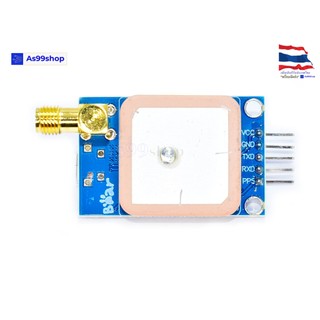

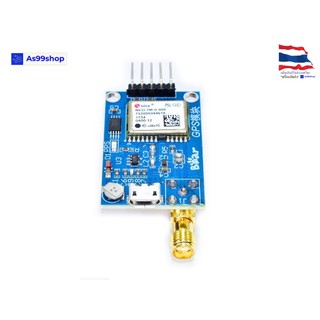

GPS module NEO-7M Module Development Board (ไม่มีเสาอากาศ)
(มีสต็อกสินค้าในประเทศไทยพร้อมจัดส่ง)
Features:
- U-BLOX NEO-7M module, compact and excellent performance
- parameters can be set via serial port and saved in EEPROM
- with SMA interface, you can connect a variety of antenna, strong adaptability
- compatible with 3.3 V / 5 V level for easy connection to a variety of microprocessor systems
- back-up rechargeable battery on board
- with micro USB, no need for USB-TTL tools
- with TTL interface
- onboard ceramic antenna
- sample code: https://playground.arduino.cc/UBlox/GPS
- evaluation software (U-Center) available for download
Specifications:
- supply voltage: 3.3 to 5 VDC (or by USB cable)
- connections: VCC (+5 V), GND (ground), TX, RX, PPS (time pulse)
- default baud rate: 9600 baud
- dimensions: 4 x 2.5 x 1.5 cm
- weight: 15 g
