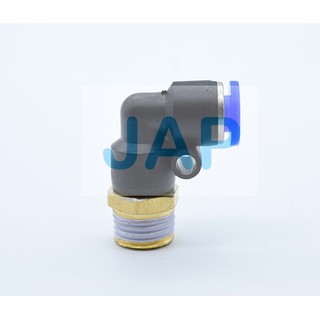

🏷️ PL Elbow Pneumatic Fitting (90°) – PAMY Brand
Used for connecting air tubes to pneumatic components at a 90-degree angle.
Designed for installations with limited space, providing secure connection and leak-free performance.
Suitable for industrial pneumatic systems and general applications.
✨ Product Features
• PL type elbow pneumatic fitting (90°)

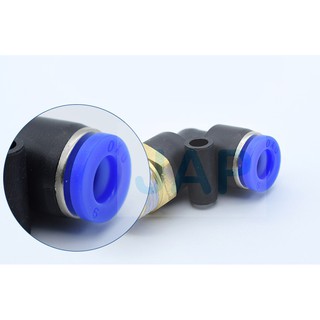

• Push-in connection system for quick tube installation
• Easy to install and remove
• Strong locking mechanism for firm tube grip
• Tight sealing to minimize air leakage
• Compatible with various pneumatic components
✅ Key Highlights
• Made from high-quality plastic material (Nylon PA)
• Heat resistance: 0 – 60°C
• 90-degree elbow design, ideal for compact installation areas
• Clean black color, durable and fade-resistant
• Reliable tube locking system to prevent air leakage
• Easy assembly and maintenance
📏 Air Tube Size (mm): 4 / 6 / 8 / 10 / 12 / 14 / 16

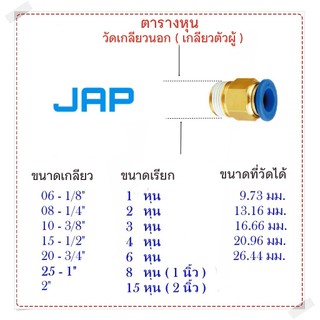

🔩 Thread Size (inch / “hun” / approx. diameter):
• 1/8" = 1 hun ≈ 9.7 mm
• 1/4" = 2 hun ≈ 13.1 mm
• 3/8" = 3 hun ≈ 16.6 mm
• 1/2" = 4 hun ≈ 20.9 mm
⚠️ Note: This product uses PT pneumatic thread, not plumbing thread.
Thread standards are different.
⚙️ Thread Type
• PT thread (BSPT standard)
• Male thread
🧩 Applications
Used to connect air tubes to pneumatic devices such as air cylinders, solenoid valves, and other fittings, especially in installations with limited space.
Suitable for factory air systems, machinery, air compressors, and general pneumatic automation systems.
