Features
- Powerful, light and universal

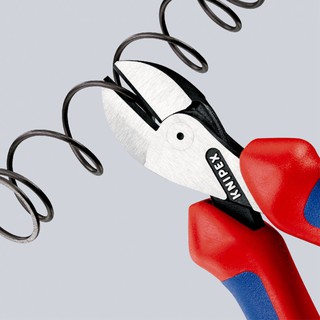

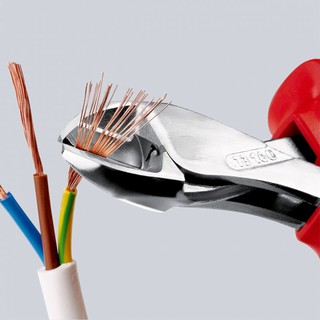

- Cuts finest strands as well as multi-core cables and piano wires
- Box-joint design: highest stability with low weight
- High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio
- 40% less force required compared with standard diagonal cutters of the same length
- Large opening width for thicker cables
- Cuts precisely, even through fine copper wires
- Compact, low-weight construction
- Doubly supported joint axis for heaviest duty
- Universally usable, in the assembly, maintenance and production
- Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened
Technical details
No. 73 02 160
EAN 4003773075127
Head Polished
Pliers Black atramentized
Handles with multi-component grips
Cutting capacities soft wire (diameter) 4.8 Ø mm
Cutting capacities medium hard wire (diameter) 3.8 Ø mm
Cutting capacities hard wire (diameter) 2.7 Ø mm
Cutting capacities piano wire (diameter) 2.2 Ø mm
Cutting capacities copper cable, multiple-stranded (diameter) 12.0 Ø mm
Length 160 mm
Net weight 175 g
