บอร์ดขับมอเตอร์ 2 ตัว กำลังขับสูงสุด 2.5A dual motor drive module positive and negative PWM
Description:

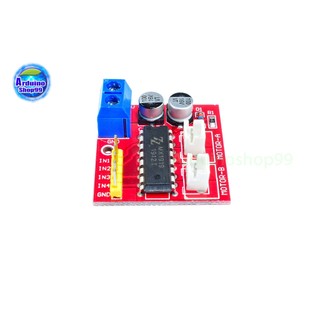

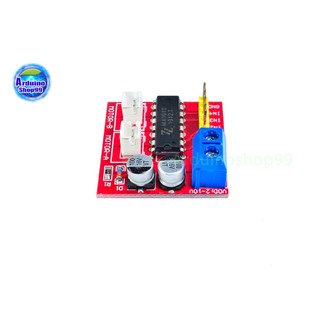

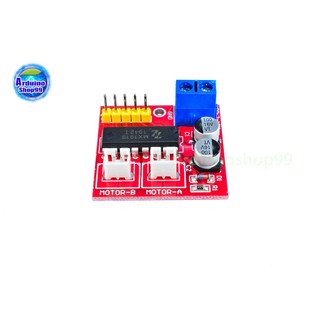

2.5A Dual H-bridge brushed DC motor Drive Controller Board Module kit for Arduino smart car robot Low power consumption
introduction:
2.5A power-enhanced motor drive module with silicone wire, pin header, terminal. The power supply voltage is 2V~10V, which can drive two DC motors or one 4-wire 2-phase stepping motor at the same time. It can realize the function of forward and reverse and speed regulation, with thermal protection and automatic recovery.
parameters:
1. Two-way H-bridge motor drive, can drive two DC motors or one 4-wire two-phase stepper motor at the same time;
2. Module supply voltage 2V-10V;
3. Signal input voltage is 1.8-7V;
4. Single working current 2.5A, low standby current (less than 0.1uA);
5. Built-in anti-common state conduction circuit, when the input terminal is suspended, the motor will not malfunction;
6. Built-in overheat protection circuit (TSD) with hysteresis effect, no need to worry about motor stall;
7. Product size: 31*32*5mm (length, width and height), small size, suitable for assembly and vehicle;
8. Mounting hole diameter: 2 mm.
9. Weight: 11g
