Brand : HIKVISION

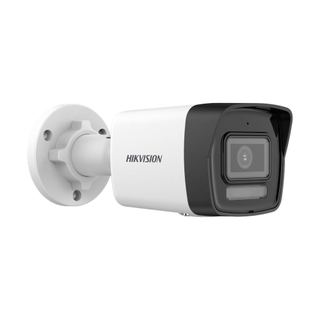

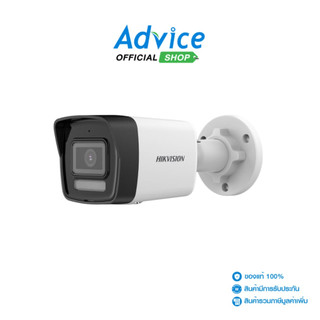

Model : DS-2CD1043G2-LIU
Image Sensor : 4MP , 1/2.8" Progressive Scan CMOS
Lens : 2.8mm
Lens Mount : M12
Focus : N/A
Zoom : N/A
Angle of View : horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
Adjustment Angle : Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Shutter : 1/3 s to 1/100,000 s
Minimum Illumination : Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Noise Reduction : N/A
IR : 30m
Day/Night : IR cut filter
S/N : N/A
WDR : 120 dB
Video Resolution : 2560 × 1440
Video Compression : H.265+
Frame Rate : Main Stream
50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
User/Host : Up to 32 users
3 user levels: administrator, operator, and user
Storage : NONE
Interface : 1x RJ45 10 M/100 M self-adaptive Ethernet port
Reset Button : N/A
Alarm : Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
ONVIF : NONE
Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Function : Heartbeat,anti-banding,mirror,password protection,password reset via email
Power : 12 VDC ± 25%, 0.4 A,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
Power Consumption : max. 5 W,Ø5.5 mm
Working Environment : Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F)
Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F)
Humidity 95% or less (non-condensing)
Ingress Protection : IP67
Package Content : N/A
Dimension (W x D x H) : 6.60 x 17.08 x 6.91 cm
Net Weight : 0.27
Package Dimension (W x D x H) : 0.00 x 0.00 x 0.00 cm
Gross Weight : 0.00
Volume : 0.00
ประกัน : 3 ปี
