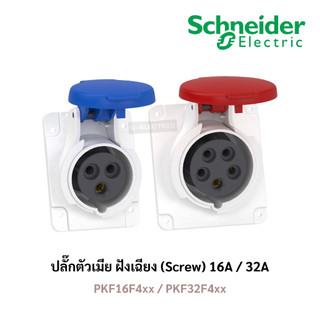

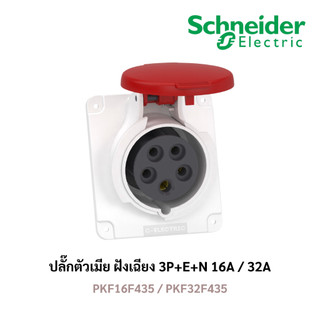

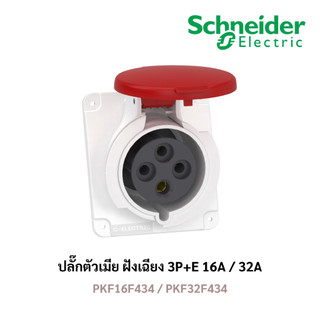

This Mureva PK socket with captive screws connection is angled wall mounted. It has (2P+E / 3P+E / 3P+E+N) poles, rated current is (16A / 32A) and the operating voltage is (230VAC / 400VAC). The dimensions of the base plate are (W) 90mm x (H) 100mm. The degree of protection is IP44 and IK08. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The cross section of the cables in (16A is 1mm² to 4mm²) and (32A is 2.5mm² to 10mm²). The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
