รายละเอียดสินค้าจากร้านค้า
✅PoE+ up to 30W IEEE802.3at
✅Support U7-Lite U7-ProU7-Outdoor U7-Pro-Max U7-Pro-WallU7-Pro-OutdoorU6-Enterprise- and other PoE+ devices
✅มีไฟ LED สำหรับการตรวจสอบสถานะ
✅อุปกรณ์ PoE Injector แบบ 2.5 Gigabit

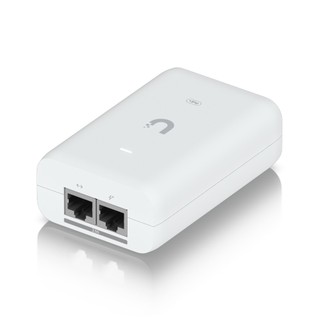

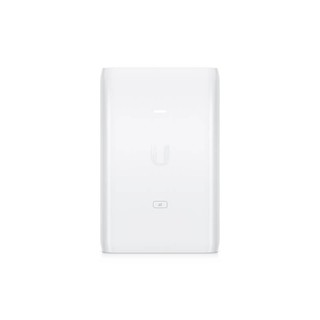

UACC-PoE+-2.5G
2.5G PoE+ Adapter (30W)
Compatibility:
U7-Lite, U7-Pro-Max, U7-Outdoor, U7-Pro-Wall, U7-IW, U7-Pro
Overview
Dimensions
93 x 62 x 35 mm (3.7 x 2.4 x 1.4")
Weight
156 g (5.5 oz)
Output Voltage
48V DC @ 0.65A
Rated Voltage
100—240V AC @ 50/60Hz
Gigabit LAN Port
✓
2-pair Powering
Pins 4, 5 (+) and 7, 8 (-)
Clamping Protection
11V Data, 60V power
Data In / PoE
RJ45 Shielded Socket
Input Current
0.75A Max.
Inrush Current
<150A peak @ 230V AC
Efficiency
>87%
Switching Frequency
65 kHz Max.
Output Ripple
1% Max.
Line Regulation
≤ 1%
Load Regulation
≤ 3%
Max. Surge Discharge
1500A (8/20 μs) power
Peak Pulse Current
36A (10/1000 μs) data
Response Time
<1 ns
Shunt Capacitance
<5 pF data
Surge Protection
Difference and common mode
Ambient Storage Temperature
-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
