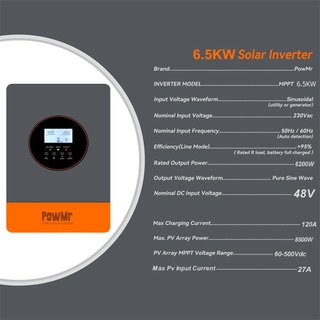

Description:

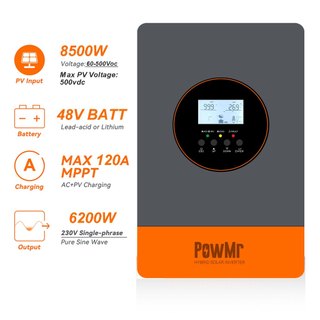

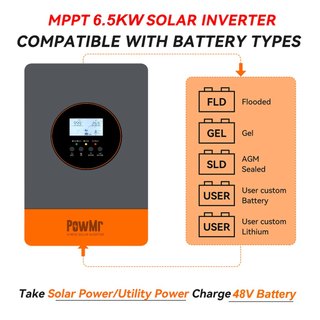

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

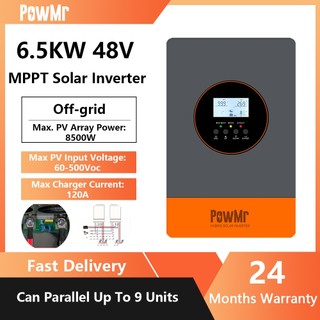

Note1:This is a wide voltage Hybrid inverter. Solar panel input voltage must be higher 60V so that can start up the inverter to work.A single unit can be used without a battery, but if it needs to be connected in parallel, a 48V battery must be connected.
Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
1. Generator or Utility.
2. PV modules (option)Consult with your system integrator for other possible system architectures depending on your requirements.
3. This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
