Feature
• 5 identification types:
- Smartphone APP via Häfele Smart Living (Bluetooth)
- Up to 10 user PIN codes
- Up to 100 key cards
- Up to 100 user fingerprints
- Mechanical key override
• Remote unlock and online mode with optional Wi-Fi multimode gateway; item code 499.21.220
• High precision locking by motorized bolt
• Easy to control and setting with Häfele Smart Living application
• English voice guidance

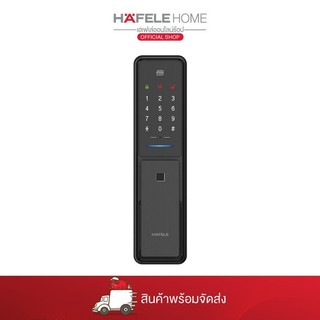

• Digital touchpad design
• Random security coding function
• Privacy function
• Low battery power alert
• Mischief and hacking prevention system
• Power supply: Alkaline-manganese battery 1.5V AA 4 pieces (Please order batteries separately.)
• 9V emergency power supply
• Suitable for DIN left and DIN right
• Suitable for door leaf thickness 35 - 50 mm
• Suitable for door frame stile min. 130 mm
• Dimension (WxHxD)

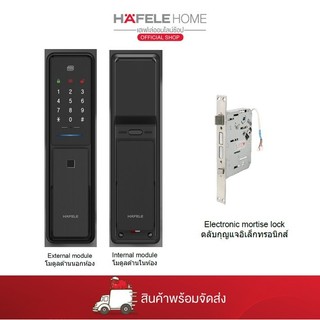

- External module: 82 × 320 x 63 mm
- Internal module: 82 × 315 x 69 mm
- Mortise lock: 24 x 240 x 110 mm (backset 70 mm)
• Supplied with
1 External and internal module, 1 Mortise lock
1 Set of striking plate, 1 Set of fixing material,

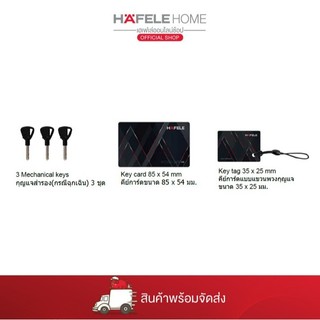

2 Key cards, 2 Key tags, 3 Mechanical keys
1 User manual, installation manual, installation template
