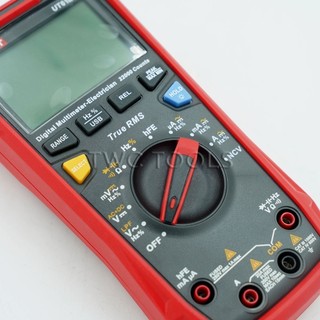

UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC. Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
Features of UT61+ Series 1000V True RMS Digital Multimeters
● True RMS
● Data hold/backlight
● Max/Min/Relative mode

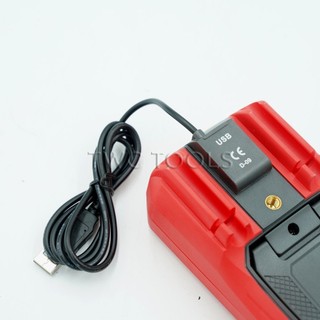

● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
Specifications UT61E+
AC voltage (V) 1000V ±(0.8%＋10)
DC voltage (V) 1000V ±(0.5%＋3)
AC current (A) 20A ±(0.8%＋10)
DC current (A) 20A ±(0.5%＋10)
Resistance (Ω) 220MΩ ±(0.5%＋10)
Capacitance (F) 220mF ±(3%＋5)
Frequency (Hz) 220MHz ±(0.01%＋5)
Duty cycle (%) 0.1%~99.9% ±(2%＋5)
Temperature (℃/℉) -
Display count 22000
Bandwidth (Hz) 40Hz~10kHz
LPF ACV √
LoZ ACV -
ACV+DCV √
Transistor hFE √
Peak Hold √
Analog bar 46
Power 1.5V battery (R03) x 4
