Specification

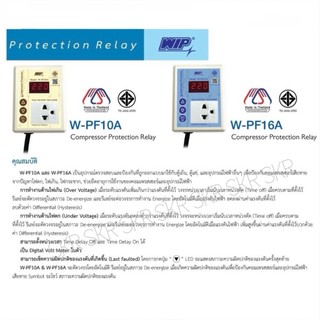

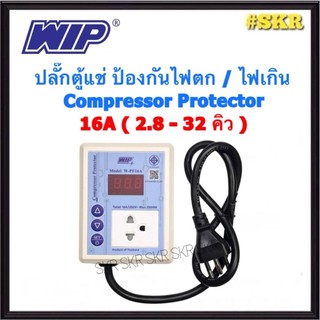

Model W-PF16A (Code 6027)
Power Consumption : 1.2 W
Input Voltage : 100 - 265 VAC
System Frequency : 50/60 Hz.
Accuracy : +/- 0.5% of normal voltage
Under voltage Protection : 20%
Over Voltage Protection : 20%
Time delay (on) : Preset at 3 min
Time delay (off) : Under Voltage : 3 sec. (Fixed)
Over Voltage : 2 sec. (Fixed)
Output Type : 2-Pole change over (SPST)
Contact Rating : 16A at 250 VAC
Relay Reset : Automatic
Operating Temperature : -10 to 55 C
Storage Temperature : -10 to 70 C
Humidity Operation : Max 85% RH
Output Type : Power Plug
Indicator : LED 3 mm
Dimension (mm) : 94x120x42
Weight : 278 g
