Features
- Clean and smooth cut without crushing and deformation

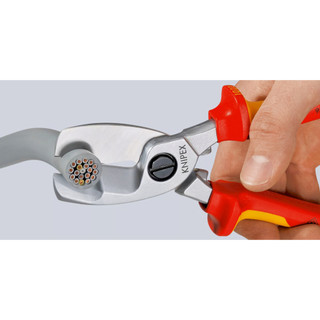

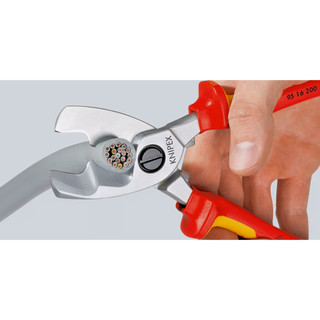

- By dividing the cutting actions into initial cut (insulating sheath in the front cutting area) and final cut (conductor in the back cutting area), cables up to Ø 20 mm can be cut in one-hand operation
- Pinch guard prevents operators' fingers being pinched
- For cutting copper and aluminium cables up to Ø 20 mm (70 mm²)
- Not suitable for steel wire and hard drawn copper conductors
- Precision-ground, hardened blades
- Low handforce required due to favourable lever ratio and special blade geometry
- Adjustable bolted joint, self-retaining screw
Technical attributes
- Part No.: 95 16 200
- EAN: 4003773026761
- Shears: chrome-plated
- Handles: insulated with multi-component grips, VDE-tested
- Weight: 340 g
- Dimensions: 200 x 68 x 19 mm
- Standard: DIN EN 60900 IEC 60900
- REACH compliant: does not contain SVHC
- RoHS compliant: not applicable
- Cutting capacity copper cable, multiple-stranded: 70 mm²
- Cutting capacity copper cable, multiple-stranded: Ø 20 mm
- AWG: 2 / 0
- VDE tested: yes
