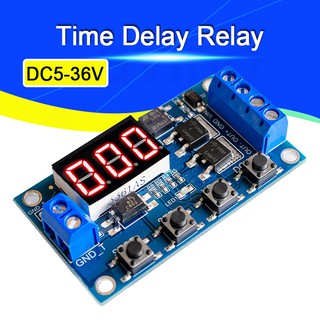

0.1 second to 999 minutes continuously adjustable
This product is easy to use and powerful, but buyers please read the operation instructions of this product in detail. It is a very practical product.
Module features and uses:
1. Realize the circuit high frequency fast and frequent on and off, unlimited switching times;
2. There will be no noise during the on-off process, no electric spark, no electromagnetic interference;
3. The service life is longer than that of common electromagnetic relays;
4. Using dual MOS parallel active output, lower internal resistance, higher current, strong power, 15A, 400W at room temperature, which meets the use of most equipment;
5. It is often used to control motors, bulbs, LED strips, DC motors, micro water pumps, solenoid valves, etc. Through this module, these devices can be easily controlled, which is very convenient.

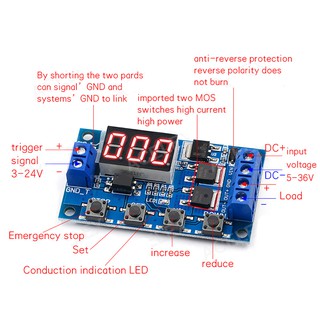

Module highlights:
1. Wide voltage operation (5~36V), most equipment can be used, very convenient;
2. The interface is clear and simple, powerful, easy to understand, and almost meets all your needs;
3. There is a key emergency stop function (STOP key), with reverse connection protection, reverse connection does not burn;
4. Added sleep mode, after enabling it, without any operation within 5 minutes, automatically turn off the display; any key to wake up;
5. Different OP, CL, LOP parameters can be set, these parameters are independent of each other and saved separately;
6. All setting parameters are automatically saved after power-off.
Product parameters:
1: Working voltage: DC 5V--36V;
2: Trigger signal source: high-level trigger (DC 3.0V-24V) The signal ground and the system ground are not in the same ground to improve the anti-interference ability of the system (also can be short-circuited to the common ground)
3: Output capacity: DC 5V--36V, continuous current 15A at room temperature, power 400W! Under auxiliary heat dissipation conditions, the high current can reach 30A.
4: Quiescent current: 15mA
5: Service life: unlimited switching; working temperature: -40—85°C; size: 6.0*3.4*1.2cm
6: With optocoupler isolation, enhanced anti-interference ability, industrial-grade circuit board, set parameters are always remembered after power failure.
pay attention:
The module is an active live output, and the voltage at the output end (load end) is equal to the input end voltage (DC 5V--36V).
The poles of'DC+' and load'+' are internally short-circuited, but the poles of'DC-' and load'-' cannot be short-circuited during use, otherwise the load will not be controlled to turn on and off, which is equivalent to the load being It's always energized.
More details can feel free to contact us for help, Thanks^^
