Note: รหัสเดิมคือ UF-SM-1G-S สินค้าจำหน่ายเป็นคู่
---------

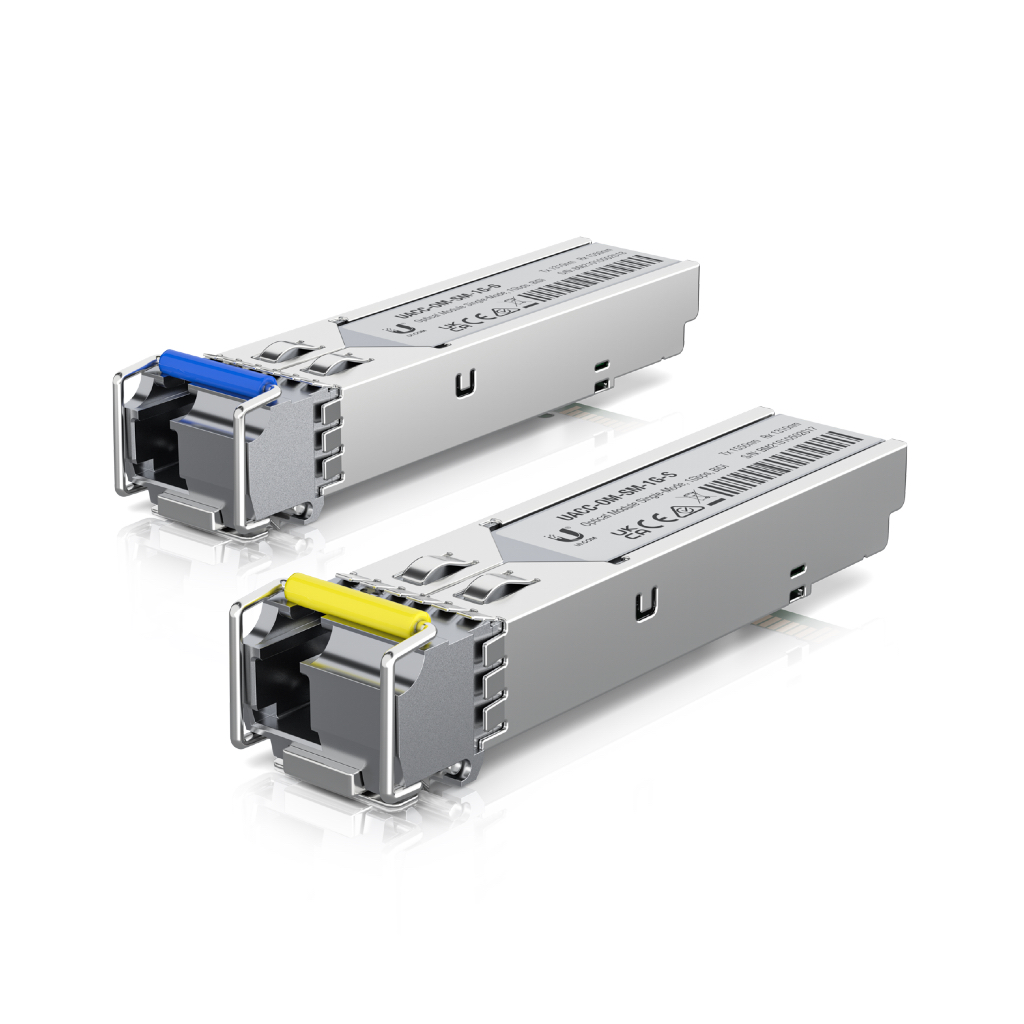

SFP transceiver that supports 1G connections up to 3 km using single-mode fiber with a simplex LC UPC connector.
Max data rate: 1 Gbps
Compatible with SFP interfaces
Simplex LC UPC connector
Supports single-mode fiber connections up to 3 km*
Technical Specifications
Overview
Connector
Type: (1) LC
Supported Media
Single-Mode Fiber
BiDi
Yes
TX Wavelength
Blue latch: 1310 nm
Yellow latch: 1550 nm
Must be used in pairs (blue latch and yellow latch).
RX Wavelength
Blue latch: 1550 nm
Yellow latch: 1310 nm
Data Rate
1 Gbps
Max. Power Consumption
0.66W
Supported Cable Distance
3 km
WARNING
CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Pack Options
2-Pack
20-pack
Ambient Operating Temperature
0 to 70° C (32 to 158° F)
NDAA Compliant
Yes
