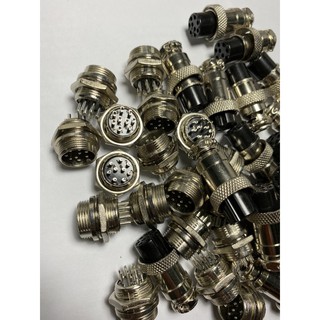

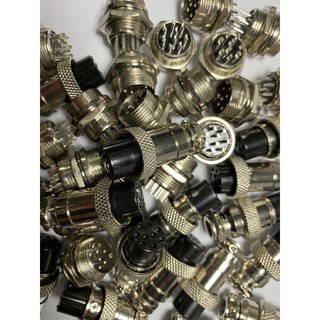

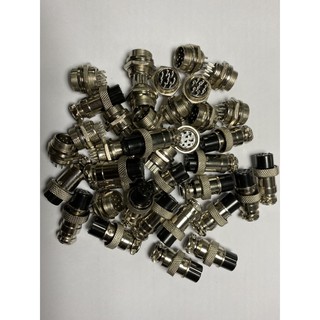

GX16 ขั้วต่อ ขนาด 2,3,4,5,6,7,8,9,10Pin เข็ม GX16-Male & Female - Connectors Socket Aviation Plug ตัวผู้ตัวเมีย

GX16 ขั้วต่อ ขนาด 2,3,4,5,6,7,8,9,10Pin เข็ม
GX16-Male & Female - Connectors Socket Aviation Plug ตัวผู้ตัวเมีย
Professional HS4-1 M16 air plug socket.
Made of soild material, more durable.
One set which includes one male and one female connector.
Specification:
Voltage: 400V(2/3/ Pins) / 250V(5/6/7/8 Pins)
Current: 5A
Environment Temperature: -50 ~ +70?
Relative Humidity: The temperature is + 40? could reach 98%.
Insulation Resistance: Normal conditions no less than 1000 m ?, not less than 20 m ? after the constant temperature test.
Testing Voltage: (50 Hz, RMS) Normal conditions 1500V, After constant temperature test 1200V.
Atmospheric Pressure: 4?4kpa.
Vibration: frequency is 10 ~ 100 Hz, accelerated speed is 100 m/s2.
Impact: Frequency is 60 ~ 80 times/min, the acceleration is 250 m/s2.
Centrifugal: Acceleration is 250 m/s2.
Type: 2/3/4/5/6/7/8 pin
Material: Metal
Color: silver
