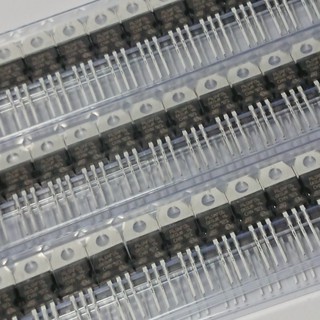

STP65NF06 P65NF06 65NF06 มอสเฟต Mosfet ภาคจ่ายไฟแอมป์รถยนต์ ยี่ห้อ ST แท้

Type Designator: STP65NF06
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 110 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 60 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 54 nC
Maximum Drain-Source On-State Resistance (Rds): 0.014 Ohm
Package: TO220
