DT-902 CEM เครื่องวัดลำดับเฟส PHASE ROTATION TESTER[ของแท้ จำหน่ายโดยตัวแทนแต่งตั้ง]

DT-902 / แบรนด์ CEM Phase Rotation Tester เครื่องวัดลำดับเฟส The Motor and Phase Rotation Indicator is a handheld
เครื่องวัดลำดับเฟส DT-902
Phase Rotation Tester
I.Introduction: DT-902 Phase Rotation Tester

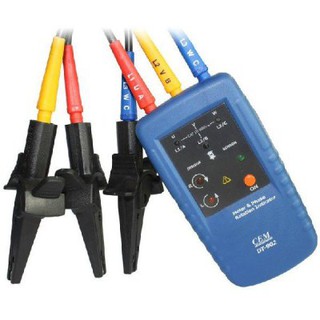

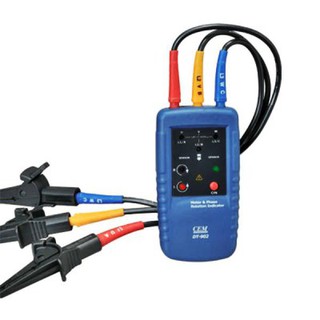

The Motor and Phase Rotation Indicator is a handheld, battery-operated Instrument designed to detect the rotary field of three-phase system and determine motor-rotation direction.

1. Determine rotary field direction

2. Non-contact rotary field indication

3. Determine the motor connection

4. Magnetic field detection

II.Specification:

Nominal voltage rotary direction 1V to 400V AC
Nominal Voltage phase indirection 120V to 400V AC
Frequency range 2 to 400Hz
Test Current (per phase) < 3.5 mA
Electrical safety DIN, VDE 0411, IEC61010 DIN;IEC61557-7/EN61557-7
Protection level CATIII 600V
Type of protection IP40
Operating Altitude 2000m
Operating temperature 0ºC to 40ºC
Size (H*W*D) 128mm x 68mm x 30mm
Weight 185g
Package Include:

1 x Phase Rotation Indicator

3 x Self-retaining tes probes (bpack)

3 x Alligator clips

1 x English manual
