The GPeR unit allows to extend Ethernet cable by additional hop (< 100 - 150 m to regular network devices, and up to 210 m to another GPeR unit) up to 1,500 m.
Handy for highrise buildings, multi-apartment buildings, with many floors and sections, where very long Ethernet cables might be a problem.
Maximium allowed length of CAT6 Ethernet cable between GPeR and power source/router is up to 100 m (depending on cable quality, high quality - up to 150 m).
Maximium allowed distance of CAT6 Ethernet cable between two GPeR devices is up to 210 m (depending on cable quality).

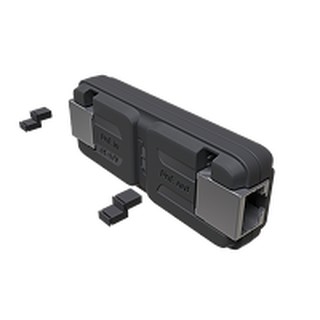

In case if the destination device does not support PoE-in powering, the PoE Passthrough can be disabled by manually removing all jumpers.
Specifications
Details
Product code GPeR
10/100/1000 Ethernet ports 1
Number of 1G Ethernet ports with PoE-out 1
Max out per port output (input < 30 V) 0.7 A
Max out per port output (input > 30 V) 2 A
Max total out (A) 2 A
PoE in 802.3af/at
PoE in input Voltage 24-57 V
PoE out 802.3af/at
Tested ambient temperature -40°C to 70°C
