รายละเอียดสินค้าจากร้านค้า
เซ็นเซอร์สวิตซ์ตรวจจับความเคลื่อนไหว 220V กันน้ำ 10A Motion sensor switch PIR
เซ็นเซอร์ตรวจจับความเคลื่อนไหว สามารถใช้ภายนอกบ้านได้ ระยะตรวจจับ 10m +-2m สามารถปรับมุมก้มเงยในการตรวจจับได้ ใช้กับไฟบ้าน 220V เพื่อตัดต่ออุปกรณ์กินไฟได้สูงสุดถึง 10A
เหมาะสำหรับบ้านที่อยากเปิดปิดไฟเฉพาะในจุดที่มีการเคลื่อนไหว
Product Parameters
Input voltage: 110-240V, globally available wide voltage ;
Rated power: 10A (AC voltage rating allows control of 1200W incandescent lamps, 300W LEDs, energy-saving lamps and other electrical appliances) ;
Sensing distance: 10 meters away, plus or minus 2 meters; (the angle of the sensing head can be adjusted up and down to control the distance)
High-power relay control, can be used for all loads such as energy-saving lamps, LED lamps, incandescent lamps, exhaust fans, solenoid valves, monitoring equipment , etc. Waterproof and dustproof, can be used indoors and outdoors .
Product Overview:
This product uses infrared human body sensing and light control technology. It controls the load by detecting human body movement (more practical, stable, energy-saving and user-friendly than traditional touch and voice control switches). The light turns on when a person enters the sensing area, and turns off automatically at the set time when the person leaves. It can identify day and night (that is, you can manually adjust the knob to select day and night operation).The product has stable performance, is safe, convenient and energy-saving. It is an intelligent lighting and security product.
2. Applicable places:
Door, staircase, corridor, elevator entrance, balcony, bathroom,In front of the mirror, wardrobe, cabinet, warehouse, basement, garage and other indoor and outdoor places.
3. Instructions for use:
1. This switch must be installed by a qualified electrician.
2. Before installation, turn off the main power supply (it is strictly forbidden to operate with power on), install the switch as required, connect the wires according to the diagram and fix the switch, and then turn on the main power supply.
4. Notes:

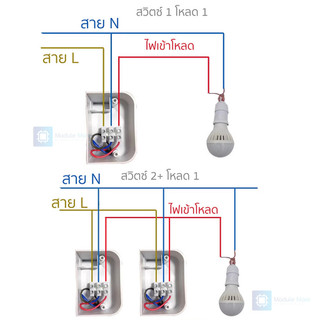

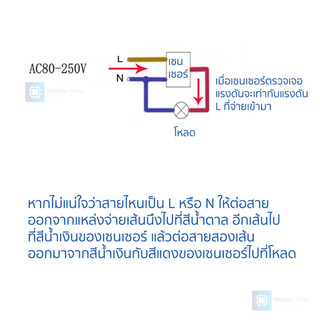

1. Please connect the wires strictly according to the wiring diagram.
2. Please do not overload or use beyond the scope.
3. This product can be used for incandescent lamps, fluorescent lamps, LED lamps and other resistive and inductive loads as well as automatic switch control of electrical equipment.
5. Technical parameters:
1. Working voltage: AC 220~240V. Power consumption: 0.1W.
2. Ambient temperature: -20℃～＋40℃
3. Delay time: 5 seconds to 10 minutes, adjustable by LUX knob
4. Load power: 1200W (resistive load such as incandescent lamp, etc.), 300W (inductive load such as fluorescent lamp, LED lamp, etc.)
5. Sensing distance: 10 +- 2 meters
6. Sensing angle: 180
7. Sensing ambient light intensity: 3 LUX (at night) to 2000 LUX can be adjusted with the LUX knob. When LUX is adjusted to the sun position, it senses both during the day and at night; when it is adjusted to the moon position, it senses only at night.
8. Installation height: 1.8 to 4.5 meters
9. Protection level: IP44 (suitable for outdoor and indoor use)
