สินค้าที่จำหน่าย ก่อนจัดส่งต้องติด Void Stiker รับประกันสินค้าที่ตัวสินค้า จำเป็นต้องแก่ะกล่องสินค้าเพื่อติดวอยด์ ให้พิจารณาก่อนสั่งซื้อ
---------------

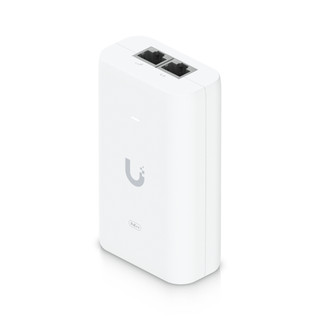

An adapter that can power UniFi PoE++ devices with wireless mesh applications, or offload PoE switch power dependencies.
Delivers up to 60W of PoE++
Even more power for UA Hub, G4 PTZ, and other PoE++ devices
Surge, peak pulse, and overcurrent protection

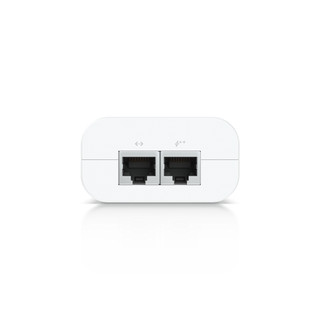

Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring
Technical Specifications
Specifications
Model U-PoE++
Dimensions 106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight 210 g (7.4 oz)
Output voltage 48V DC @ 1.25A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability No
Reset button No
Rated voltage 100—240V AC @ 50/60Hz
Input current 1.3A @ 120V AC
0.75A @ 230V AC
Inrush current <100A peak @ 120V AC
<200A peak @ 230V AC
Efficiency 85+%
Output ripple 1% max.
Switching frequency 65 kHz
Line regulation ≤ 1%
Load regulation ≤ 3%
2-pair powering No
4-pair powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

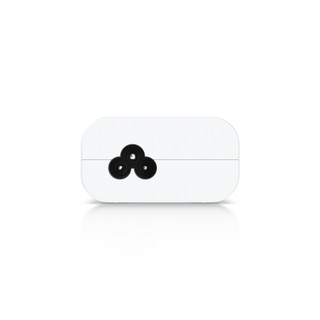

AC connector IEC-320 C6
Data In / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 μs) power
Peak pulse current 36A (10/1000 μs) data
Shunt capacitance <5 pF data
Response time <1 ns
Power method Universal AC input, 100—240V AC, 50/60 Hz
Power supply AC/DC
Supported voltage range 100—240V AC
Max. PoE+ wattage per port by PSE 60W
Ambient operating temperature 0 to 40° C (32 to 104° F)
Storage temperature -30 to 70°C (-22 to 158° F)
Ambient operating humidity 10 to 95% noncondensing
Certifications CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
