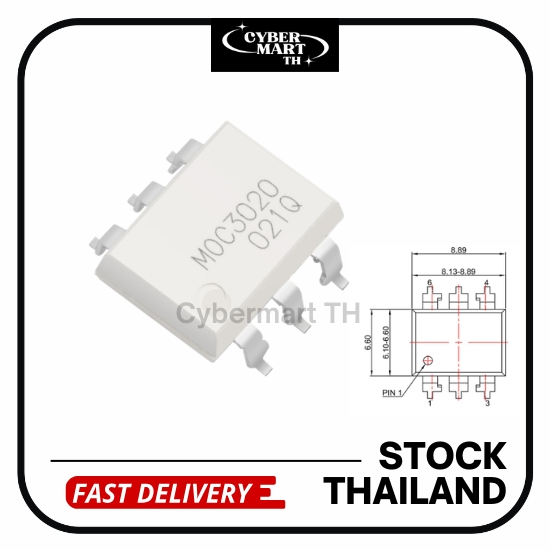

📌 MOC3020 Random-Phase Optotriac Driver (DIP-6)
The MOC3020 is a random-phase optoisolator designed to trigger an external TRIAC. It contains an infrared LED and a bilateral silicon switch, providing optical isolation between low-voltage control circuits and AC power circuits.
Ideal for safely controlling 110V / 220V AC resistive and inductive loads using microcontrollers and other low-voltage controllers.
━━━━━━━━━━━━━━━━━━━
⭐ Key Features
▶ Type: Random-Phase Optotriac Driver (Non-Zero-Cross)
▶ Isolation Voltage: ≥5300VAC RMS
▶ Maximum Blocking Voltage: Approximately 400V, depending on model
▶ Low LED degradation for stable operation
▶ UL / VDE certification on selected versions
▶ DIP-6 package, suitable for breadboards and PCBs
━━━━━━━━━━━━━━━━━━━
📦 Technical Specifications
● Internal Structure: IR LED + Bilateral Switch
● Designed to drive an external TRIAC
● Supports 115V–220V AC applications with a properly designed circuit
● Optical isolation between control and power circuits
━━━━━━━━━━━━━━━━━━━
🔧 Applications
✅ External TRIAC control for AC loads
✅ Solid State Relays (SSR)
✅ Incandescent lamp dimmers
✅ AC motor control
✅ Solenoid and valve control
✅ Industrial control systems
✅ Vending machines
✅ Traffic signal systems
━━━━━━━━━━━━━━━━━━━
⚠️ Note
This component is not a zero-cross type and must be used with a correctly designed external TRIAC circuit. High-voltage AC work requires proper insulation and safety precautions.
