Six outstanding standing funcyions and quality:
1.Intelligent parameter setting.
2.Low frequency high torque.
3.Multi-segment run.
4.Automatic voltage regulation.
5.RS485 communication.
6.Low noise.
NIne protectiveness take care of your equipment:
1.Overload protection.
2.Overheat protection.
3.Over-voltage protection.
4.Low-voltage protection.
5.Overcurrent protection.
6.Lost phase protection.
7.Ground protection.
8.Short circuit protection.
9.Stalling protection.
Package:

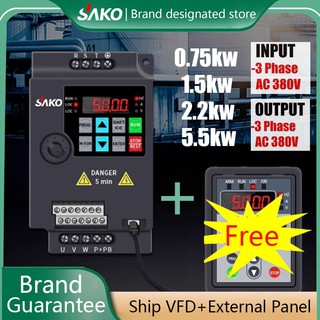

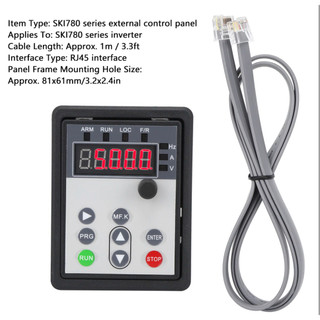

1 VFD + External Control Panel
Features:
V/F control, vector control and output torsion control.
Built-in RS-485 communication interface.
With a speed potentiometer and external panel.
Built-in synchronous control and proportional synchronization control.
6 speed control modes, Can run automatically.
Can choose multiple running commands or frequency channel. Can be achieve part or all of the keys locked(Analog potentiometer unlock).
Relay normally open and two high configuration output have 100 kinds of ways optional.
5 digital opto-isolated inputs, 100 kinds of ways optional.
1 analog input, 2 analog output channel.
Having textile pendulum frequency function, It can be widely applications for textile equipment.
Built-in user-defined timer / counter.
At zero speed, can output 0-100% of adjustable torsion, with zero speed brake function.

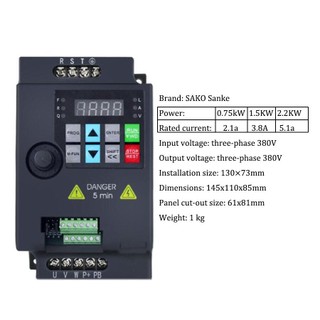

Specifications:

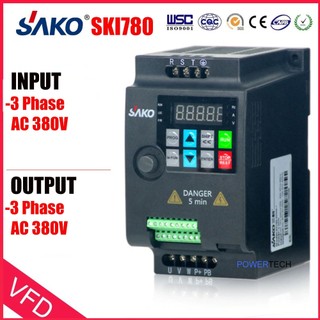

Model: SKI780
Rated Voltage (Optional): 3-phase 380V to 3-phase 380V
Output Power (Optional): 0.75/1.5/2.2kW/5.5kw
Control Way: Current vector Output Voltage Regulation Mode: PWM control
Size: Approx. 110 x 85 x 142mm / 4.3 x 3.3 x 5.6in
Weight: Approx. 1000-1042g / 35.3-36.7oz
