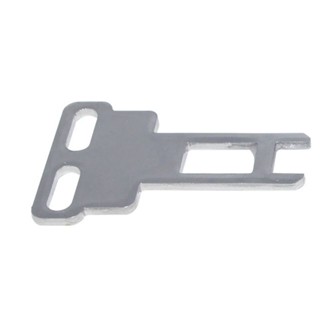

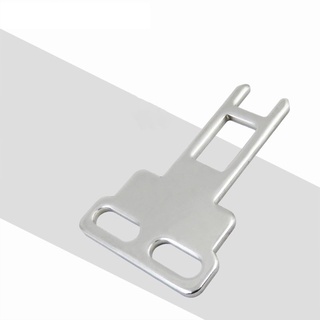

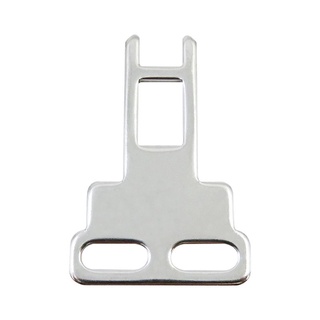

Door Safety Interlocks Switches Actuating Key Silver Tone Direct Acting

Features: Operating speed: 0.1m~0.5m/s
Operating frequency: 30operations/minutes
Contact resistance: 20mmax.(initial)
insulation voltages: 400V
Vibration shock: mechanical: Approx.100.0G'S, electrical: Approx.30G'S

Specifications: Safety Interlocks Switches Key
Characteristic:
Rating: 3A 240VAC (A300)
Operating speed: 0.1m~0.5m/s
Operating frequency: 30operations/minutes
Contact resistance: 20mΩmax.(initial)
Insulation resistance: 100mΩmin.(at 500VDC)
insulation voltages: 400V
Dielectrics strength: AC2500V/Umip 4KV
Vibration shock: mechanical: Approx.100.0G'S, electrical: Approx.30G'S
environment temperature: -10℃~+70℃ (with ice)
environment Humidex: ＜95%
Life: mechanical:10000000.0 operations/min, electrical: 150000 operations/min
Degree of protections: IP65 (EN60947-5-1)
Short circuits protective device: 10Amp fuses

Type: Interlocks Switches Key
Material: Metal
Features: Interlocks Switches Key, Door Safety, Actuating, Direct Acting, Furniture Electric, Hardware
Dimension: about 4.5x1.3x3cm/1.77x0.51x1.18in
Color: Silver
Quantity: 1Pc

Package Includes: 1Pc Interlocks Switches Key

note: Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order. Due to difference between different monitors, the picture may not reflect the actual color.
