รายละเอียดสินค้าจากร้านค้า
🔴 หมายเหตุการรับประกันสินค้า Micro SD ต้องเก็บPACKAGE ในการส่งเคลมทุกครั้ง หากไม่มีมี PACKAGE ทางร้านไม่รับเคลมทุกกรณีนะคะ
CAMERA
Image Sensor1/3” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/White Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
LENS
TypeFixed Focal Lens
Focal Length2.8 mm/4 mm
Aperture2.8 mm: F1.6
4 mm: F1.6
FOV2.8mm:
Horizontal FOV: 101°, Vertical FOV: 57°, Diagonal FOV: 123°
4mm:
Horizontal FOV: 86°, Vertical FOV: 48°, Diagonal FOV: 103°
Lens MountM12*P 0.5
DORI Distance2.8 mm:
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)
4 mm:
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Angle Adjustment (Manual)
RangePan: 0° to 360°,
Tilt: 0° to 85°
Rotate: 0° to 360°
ILLUMINATORIR
LEDQuantity: 2
Range: 30m
Wavelength: 850nm
White LEDQuantity: 2
Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
VIDEO
Max. Resolution2560 X 1440
Main StreamFrame Rate
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2560x1440, 2304x1296, 2048x1280,1920x1080,1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only
supports up to 20fps.
Sub-StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only
supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
AUDIO
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
NETWORK
Protocol• TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP, DNS, RTSP
• NTP
• UPnP UDP
• SSL/TLS
• FTP/SFTP
• RTP
• IPv4
• IPv6
• ARP
• SNMP
• IEEE 802.1x
ONVIFYes
APIOpen Network Video Interface (Profile S)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, VIGI NVR, Web
Web BrowserGoogle Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart EventHuman & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm LinkageMemory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage MethodN/A
Output NotificationMessage Push
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmN/A
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in MicrophoneYes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in SpeakerYes
AudioN/A
GENERALOperating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)

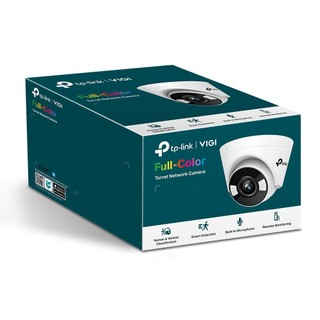

Package ContentsVIGI Network Camera
Quick Start Guide
Mounting Accessories
MaterialPlastic
Net Weight0.24 Kg
Gross Weight0.4 Kg
Power Supply12V DC ± 5%, Max. 7 W, 5.5mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 8 W
Product Dimensions (L x W x H)Φ123x84 mm
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
✅ได้รับสินค้าของแท้ 100%
✅สินค้ามีสต็อกพร้อมส่ง
✅สามารถออกใบกำกับภาษีได้
✅สามารถเปลี่ยนสินค้าที่ชำรุดกับทางร้านได้โดยตรงภายใน 7 วัน (นับจากวันที่ได้รับสินค้า)
