✅ Protection of persons against electric shock by indirect contact
✅ Suitability for residential isolation according to IEC 61008-1 and IEC 61008-2-1 standards
✅ Easy to install with unified terminal design and wiring indication

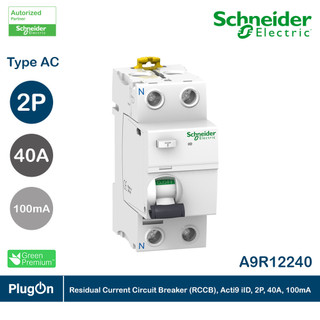

✅ This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB).
✅ It is a 2P circuit breaker with 40A In rated current, a sensitivity of 100mA with a AC type protection class. This product protects against electrical shock by indirect contact and fire hazards.
✅ It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face.
✅ This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard.
✅ The (Im/IΔm) rated breaking and making short circuit capacity is 1500A.
✅ The (Inc/IΔc) conditional rated short circuit current is 10kA.
✅ The mechanical endurance is going up to 20000 cycles and electrical endurance going up to 15000 cycles.
✅ The Ue operational voltage is 220VAC to 240VAC.
✅ The Ui rated insulation voltage is 500VAC.
✅ The Uimp rated impulse withstand voltage is 6kV.
✅ The frequency is 50Hz or 60Hz. It is DIN rail mountable.
✅ The width in 9mm pitches is 4. The product colour is white (RAL9003).
✅ The dimensions are (W) 36mm x (H) 91mm x (D) 73.5mm.
✅ The weight is 0.21kg. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -5°C to 60°C. The storage temperature is from -40°C to 85°C.
