Brand : HIKVISION
Model : DS-7204HQHI-M1/XT
Supported Camera Types : AHD / TVI / CVI / Analog / IP
Video/Audio input : Analog Video Input : 4-ch
IP Video Input : 1-ch (up to 5-ch)
HDTVI Input : 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input : 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input : 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
CVBS Input : PAL/NTSC
Audio Input : 1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ) , 8-ch via coaxial cable
Video/Audio output : HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording : Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
- When 1080p Lite mode is not enabled 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF
- When 1080p Lite mode is enabled 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate Main stream
When 1080p Lite mode not enabled
- For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
- For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
- For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
- For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
- For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled
- 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Frame Rate Sub-stream : WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate : 32 Kbps to 6 Mbps
Dual-stream : Support main stream or sub stream
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bitrate : 64 Kbps
Network : Remote Connection : 32
Total Bandwidth : 72 Mbps
Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-Fi : Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Interface : 1x Serial Interface
1x SATA interface
2x USB 2.0 (Front panel: 1 × USB 2.0 , Rear panel: 1 × USB 2.0)
1x HDMI
1x VGA
Storage : up to 10 TB capacity for each disk
Power Supply : 12 VDC, 1.5 A
Power Consumption : ≤ 18 W (without HDD)
Working Environment : Working Temperature : -10 °C to + 55 °C (14 °F to 131 °F)
Working Humidity : 10% to 90%
ONVIF : YES
PoE : NONE

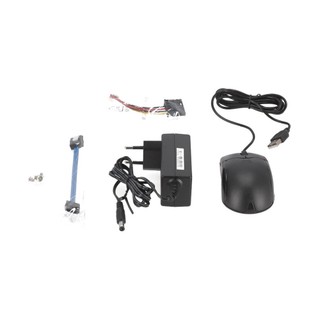

Package Contents : N/A
Dimension (W x D x H) : 31.50 x 24.20 x 4.50 cm
Net Weight : 1.16
Package Dimension (W x D x H) : 0.00 x 0.00 x 0.00 cm
Gross Weight : 0.00
Volume : 0.00
ประกัน : 3 ปี
