TECHNICAL SPECIFICATIONS
Model 5A700I
Rating (VA/W) 700VA/360W
Format Tower
Electrical characteristics
Input voltage range 140–300 VAC
Frequency range 60/50 Hz (Auto sensing)
Surge protection Yes
Generator compatible Yes
Mute by power key Yes
Circuit breaker Yes
Output
Output voltage 230 VAC
Output voltage reg. (Battery mode) ±10%
Battery wave form Stepped sine wave
Protection PCBA current sensor (F/W protection)

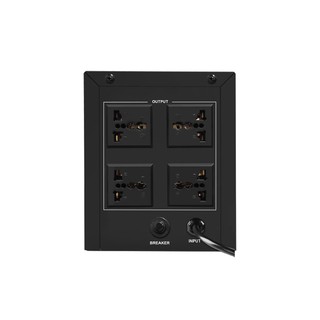

Output backup socket DIN model: (2) Schuko outlets
NEMA model: (4) NEMA Universal outlets
UNI model: (2) Universal outlets
Transfer time 2–6ms typical, 10ms max
Battery
Type 12V/7Ah x1
Floating Charging Voltage 13.5–13.8V
Recharge time 4–6 hours recover to 90% capacity
Typical battery runtime
IT Load (100W) 18 min
50% load 5 min
75% load 1.5 min
Interface
On / Off switch Yes
Indicator LED
Communication–USB No
Communication–RS232 No
RJ11 protection No
Physical
Dimension D x W x H (mm) 297*101*142
Weight (kg) 4
Package Color box
Customer service and support
Warranty 2 years
