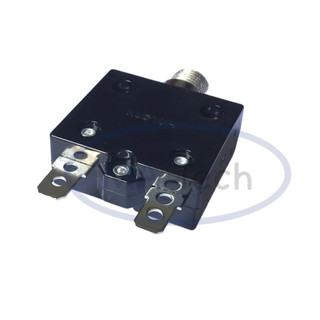

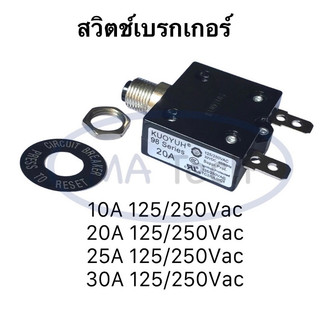

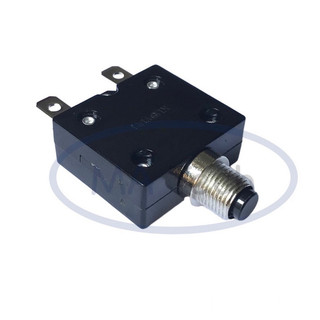

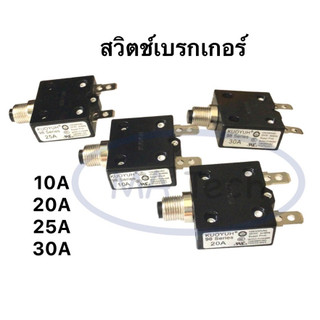

KUOYUH 98 series สวิทซ์เบรกเกอร์ 10A 20A 25A 30A 40A 50A Overload Thermal Circuit Breaker จำนวน 1 ตัว

KUOYUH 98 series สวิทซ์เบรกเกอร์ 10A 20A 25A 30A Overload Thermal Circuit Breaker จำนวน 1 ตัว
1. Following UL1077 Standard, EN60934 Standard, IEC60934 Standard.
2. (Cadmium free contacts)Comply with European environmental protection requirements.
3. Use bakelite as the main body. High temperature resistance. High security.
4. Trip Free Cycling
Ratings
1. Current rating range : 10A 20A 25A 30A
2. Input voltage rating : 125/250VAC; 32/50VDC
3. Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)
Testing Performed
1. Current test : 200% current full-inspect test
2. Dielectric Strength Test : 1500VAC/min
3. Glow-wire test : 850°
Safety Certification
● Electrical appliances certification : UL, CSA, CB, VDE, TUV, CCC, SAA
● Environmental standards : RoHS, REACH
