HDMI Switch 8 Port Selector 8X1 Full HD กล่องเลือกสัญญาณเข้า 8ออก1จอ กดสลับ

HDMI switcher 8 port เข้า 8 ออก 1 กดสลับ
• High Performance, up to 2.5 Gbps per channel

• Supports 36-bit deep color

• Supports 1.3B 1.4V3D 4K 30Hz

• Maintains 480i/p, 576i/p, 720p, 1080i/p and 1250p resolutions

• Supports HDCP 1.2 compliant devices

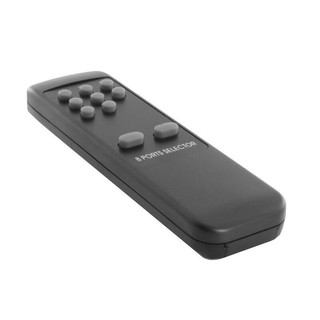

• Inputs can be switched automatically with the IR remote control or switched using the front panel buttons

SPECIFICATIONS
Date tranfer speed...........................................................................10.2Gbps

Input DDC Signal ...............................................................................5 volts p-p (TTL)

HDMI Connector ..........................................................................type A 19 pin female

Power Supply ....................................................................................................5V DC

Dimensions ....................................................................... L*W*H= 275x107x35(mm)

Weight……………………………..…………………………………………1Kg

Package Includes
(1) 8x1 Switcher
(2) 5V DC Power Supply
(3) User’s Manual
