รายละเอียดสินค้าจากร้านค้า
✅PoE+ up to 30W IEEE802.3at
✅Support U7-Lite U7-ProU7-Outdoor U7-Pro-Max U7-Pro-WallU7-Pro-OutdoorU6-Enterprise- and other PoE+ devices
✅มีไฟ LED สำหรับการตรวจสอบสถานะ
✅อุปกรณ์ PoE Injector แบบ 2.5 Gigabit

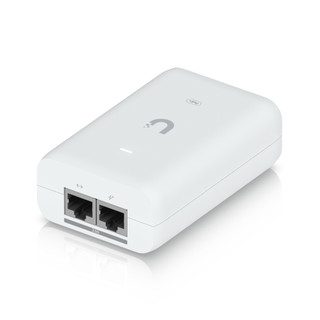

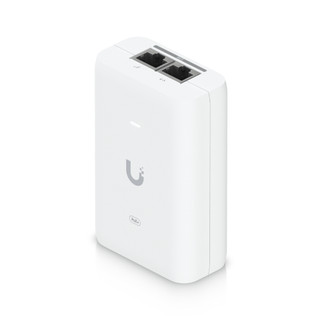

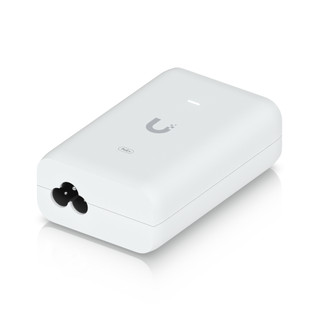

UACC-PoE+-2.5G
2.5G PoE+ Adapter (30W)
>>>รับประกันการใช้งาน 1 ปี<<<
Technical Specification
Compatibility
U7-Pro
U7-Outdoor
U7-Pro-Max
U7-Pro-Wall
U7-Pro-Outdoor
U6-Enterprise-IW
U6-Enterprise
Installation Guide
Dimensions93 x 62 x 35 mm (3.7 x 2.4 x 1.4")Weight156 g (5.5 oz)Output voltage48V DC @ 0.65ALAN activity indicatorNoGigabit LAN portYes, up to 2.5 GbERemote reset capabilityNoReset buttonNoRated voltage100—240V AC @ 50/60HzInput current0.75A max.Inrush current<150A peak @ 230V ACEfficiency>87%Output ripple1% max.Switching frequency65 kHz max.Line regulation≤ 1%Load regulation≤ 3%2-pair poweringPins 4, 5 (+) and 7, 8 (-)4-pair poweringNoData In / PoERJ45 shielded socketSurge protectionDifference and common modeClamping protection11V data, 60V powerMax. surge discharge1500A (8/20 μs) powerPeak pulse current36A (10/1000 μs) dataShunt capacitance<5 pF dataResponse time<1 nsAmbient operating temperature0 to 40° C (32 to 104° F)Storage temperature-30 to 70°C (-22 to 158° F)Ambient operating humidity10 to 95% noncondensingCertificationsCE, FCC, IC, UL, UKCA, KC, CCC, RoHS
