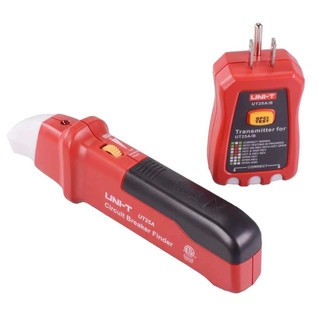

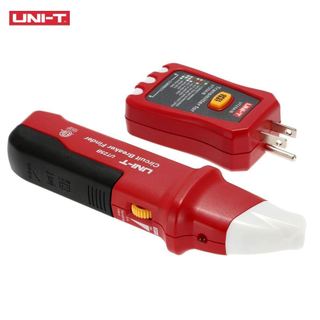

UT25A/B AC Circuit Breaker Finder
UT25A/b circuit breaker finder can perform NCV/GFCI test with LED indicators for wire connection check. It can be applied to detect circuits of AC power frequency system and find the corresponding breaker issues in factory, school etc.
Specifications of UT25A/B AC Circuit Breaker Finder
Specifications Range UT25A
Operating Voltage 90~120VAC √ (ใช้ไฟ220v ได้แน่นอน ทดสอบและขายไปเยอะแล้ว)
Working Frequency 47~63Hz √
GFCI Test About 6mA √
Contact Indicator Open Ground √
Open Neutral √
Open Hot √
Hot/NEU Reverse √
Hot/GND Reverse √
GFCI Testing In Progrss √
Hot On NEU With Hot Open √
Correct √

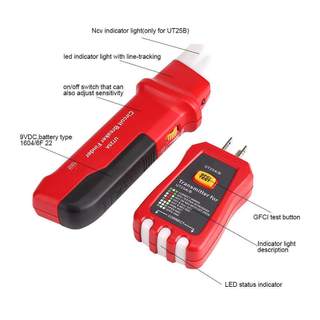

Features
Adjustable Sensitivity √
Beeper Indicattion √
Flashing LED light Indication √
NCV Test
Low Battery Indication √
General Characteristics
Power 9V Battery(6F22)
Product Color Red and Grey
Product Net Weight Transmitter-110g
Receiver-110g
Product Size Transmitter-103mm×56mm×30mm
Receiver-192mm×54mm×28mm
Standard Accessories Batteries
Standard Individual Packing Blister, English Manual
Standard Quantity Per Carton
Standard Carton Measurement
Standard Carton Gross Weight
