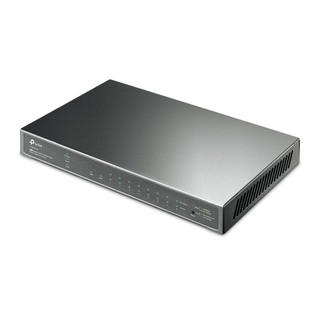

TP-LINK TL-SG2210P
JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots
Features 8 PoE+ ports, with total PoE power budget of 58W* and useful PoE power management features
Gigabit Ethernet connections on all ports provide full speed of data transferring
Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
WEB/CLI managed modes, SNMP, RMON bring abundant management features
Innovative energy-efficient technology saves up to 50% of power consumption
HARDWARE FEATURES
Standards and Protocols:
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface:

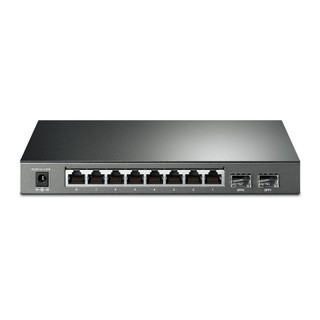

8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
2 1000Mbps SFP Slots
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Fan Quantity: Fanless
Power Supply:
100~240VAC, 50/60Hz
External Power Adapter(Output: 53.5VDC/1.31A)
PoE Ports (RJ45):
Standard: 802.3af/at compliant
PoE Ports: 8 Ports
Power Supply: 61 W*
Dimensions ( W x D x H ): 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)
Mounting Desktop / Wall-Mounting
Max Power Consumption:
V3.2: 76.5 W (220 V/50 Hz) (with 61 W PD connected); 10.3 W (220 V/50 Hz) (no PD connected)
V4: 74.4 W (220 V/50 Hz) (with 61 W PD connected)
V5: 77.8 W (110 V/60 Hz) (with 61 W PD connected)
Max Heat Dissipation:
V3.2: 261.02 BTU/hr (220 V/50 Hz) (with 61 W PD connected); 35.14 BTU/hr (220 V/50 Hz) (no PD connected)
V4: 253.89 BTU/hr (220 V/50 Hz) (with 61 W PD connected)
V5: 265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected)
PERFORMANCE
Switching Capacity: 20 Gbps
Packet Forwarding Rate: 14.88 Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4.1 Mbit
Jumbo Frame: 9 KB
